Wieland GST18I3F Device Connector - 3 Pole, 20A, 250V, Spring Clamp, White Coding
Wieland GST18I3F Device Connector - 3 Pole, 20A, 250V, Spring Clamp, White Coding
SKU:ELE-f23b9c
Reliable Wieland GST18I3F Device Connector for indoor applications, 3-pole, 20A, 250V, spring clamp, white coding.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
Wieland GST18I3F Device Connector - 3 Pole, 20A, 250V, Spring Clamp, White Coding
$12.99
Quantity: 1
Claim Your Seller Account
Wieland GST18I3F Device Connector - 3 Pole, 20A, 250V, Spring Clamp, White Coding
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland GST18I3F S2 R V WS Device Connector is a high-quality, 3-pole male connector designed for secure snap-in panel mounting. With a spring clamp connection, it ensures reliable electrical connections up to 20A at 250V. The connector features polyamide housing, copper-zinc contacts, silver-plated surfaces, and IP20 protection. Compliant with RoHS and REACH regulations, it meets industry standards for safety and environmental responsibility. Ideal for indoor electrical applications requiring precise and durable connections.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Classification Eclass 81 Classification
27440602
Classification Etim 40 Classification
EC002566
Classification Etim 50 Classification
EC002566
Classification Etim 60 Classification
EC002566
Classification Etim 70 Classification
EC002566
Connection Data Maximum Fine Stranded Connection Cross Section
1.5 mm²
Connection Data Maximum Solid Connection Cross Section
2.5 mm²
Connection Data Minimum Fine Stranded Connection Cross Section
0.5 mm²
Connection Data Minimum Solid Connection Cross Section
0.5 mm²
Connection Data Terminations Per Pole
2
Connection Data Wire Strip Length
9 mm

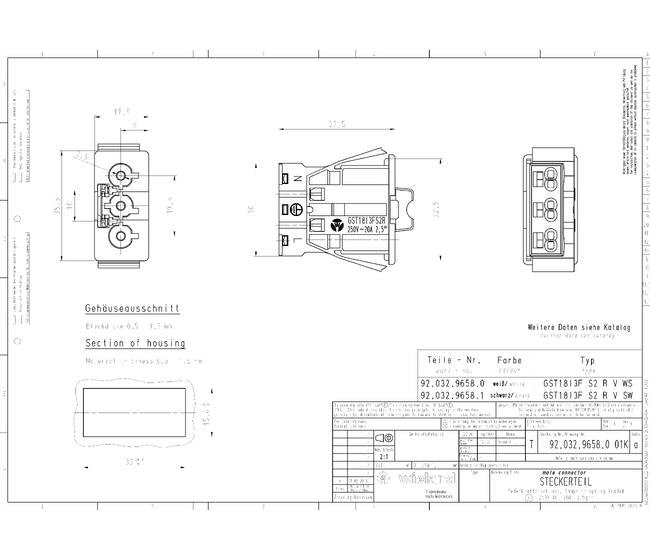

Dimensions Height
17.5 mm
Dimensions Length
37.5 mm
Dimensions Width
32.8 mm
General Brands
Wieland
General Color Of Codingcontact Carrier
White
General Lockable
Self-Locking (Unlocking by Hand)
General Marking Of Poles
L | N | PE
General Maximum Rated Voltage
600 V
General Mechanical Coding
Code 1
General Model
GST18I3F S2 R V WS
General Number Of Poles
3
General Pollution Degree
2
General Rated Current
20 A
General Rated Impulse Voltage
4 kV
Material Contact Material
Copper Zinc (CuZn)
Material Fire Load
0.065 kW·h
Material Halogen Free
Yes
Material Housing Material
Polyamide
Material Insulation Components Continuous Temperature
100 ºC
Material Surface Finish
Silver-Plated
Model Angle Of Plug
Straight
Model Built In Component
Snap-In
Model Connection Type
Spring Clamp Connection
Model Degree Of Protection
IP20
Model Remark To Type Of Connection
Fine stranded and stranded conductors require cable end sleeve
Model Thickness Of Housings Electrical Device
1.5 mm
Model Thickness Of Housings Electrical Device 2
0.5 mm
Model Type
Male
Product Compliance Reach Svhc Cas Numbers
7439-92-1
