Wieland GST18I3F Panel Mount Connector
Wieland GST18I3F Panel Mount Connector
SKU:ELE-5916f3
High-quality Wieland GST18I3F Panel Mount Connector for secure 3-pole connections; Rated 600 V, 20 A; RoHS compliant
Regular price
$14.99
Regular price
Sale price
$14.99
Unit price
per
Initiate Order
Wieland GST18I3F Panel Mount Connector
$14.99
Quantity: 1
Claim Your Seller Account
Wieland GST18I3F Panel Mount Connector
$14.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

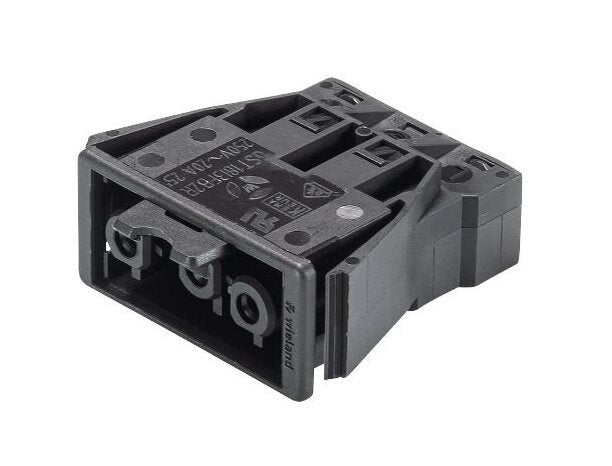

The Wieland GST18I3F B2 R V SW Device Connector is a high-quality 3-pole female connector designed for reliable electrical connections. With a maximum rated voltage of 600 V and a rated current of 20 A, this connector is suitable for indoor applications. Featuring self-locking mechanism for secure connections, spring clamp connection type, and black color-coding for easy identification, this connector ensures efficient and safe electrical connectivity. Compliant with RoHS standards, the connector meets industry requirements for environmental safety.
Product Specifications
Classification Eclass 81 Classification
27440602
Classification Etim 40 Classification
EC002566
Classification Etim 50 Classification
EC002566
Classification Etim 60 Classification
EC002566
Classification Etim 70 Classification
EC002566
Connection Data Maximum Fine Stranded Connection Cross Section
1.5 mm²
Connection Data Maximum Solid Connection Cross Section
2.5 mm²
Connection Data Minimum Fine Stranded Connection Cross Section
0.5 mm²
Connection Data Minimum Solid Connection Cross Section
0.5 mm²
Connection Data Terminations Per Pole
2
Connection Data Wire Strip Length
9 mm

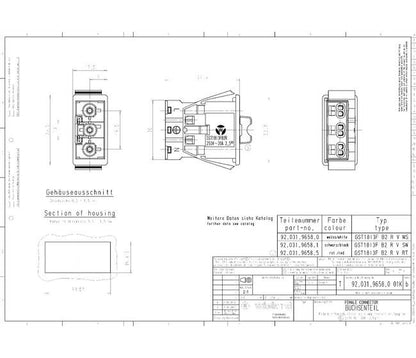

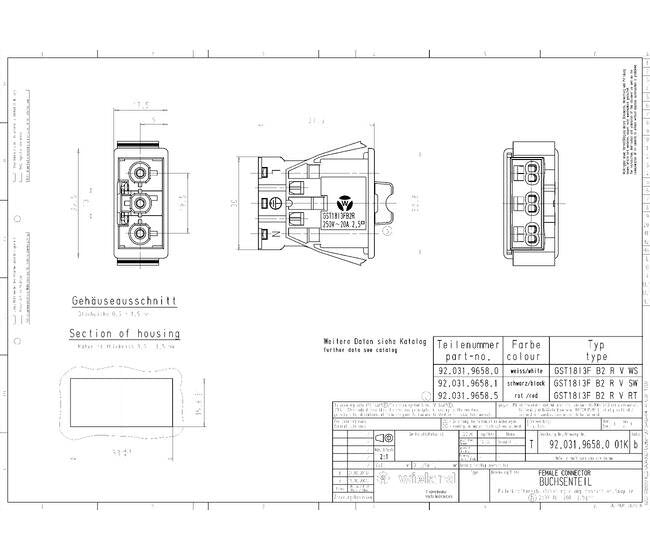

Dimensions Height
17.5 mm
Dimensions Length
37.5 mm
Dimensions Width
32.8 mm
General Brands
Wieland
General Color Of Codingcontact Carrier
Black
General Lockable
Self-Locking (Unlocking by Hand)
General Marking Of Poles
L | N | PE
General Maximum Rated Voltage
600 V
General Mechanical Coding
Code 1
General Model
GST18I3F B2 R V SW
General Number Of Poles
3
General Pollution Degree
2
General Rated Current
20 A
General Rated Impulse Voltage
4 kV
Material Contact Material
Copper Zinc (CuZn)
Material Fire Load
0.063 kW·h
Material Halogen Free
Yes
Material Housing Material
Polyamide
Material Insulation Components Continuous Temperature
100 ºC
Material Surface Finish
Silver-Plated
Model Angle Of Plug
Straight
Model Built In Component
Snap-In
Model Connection Type
Spring Clamp Connection
Model Degree Of Protection
IP20
Model Remark To Type Of Connection
Fine stranded and stranded conductors require cable end sleeve
Model Thickness Of Housings Electrical Device
1.5 mm
Model Thickness Of Housings Electrical Device 2
0.5 mm
Model Type
Female
Product Compliance Reach Svhc Cas Numbers
7439-92-1
