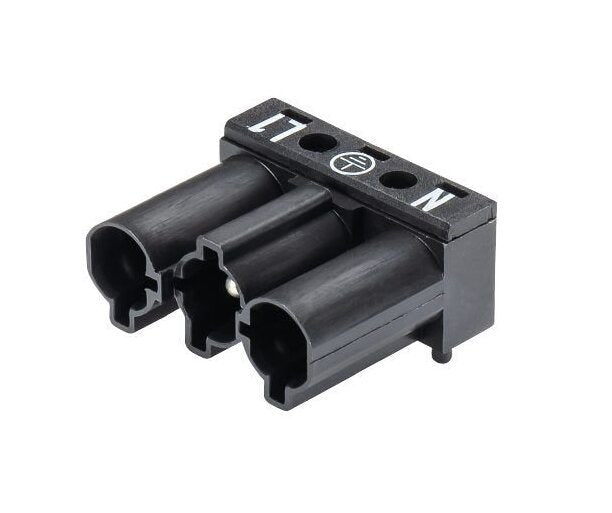

Wieland GST18I3L S1H SW Device Connector - 3 Pole, Male, Horizontal, Black
Wieland GST18I3L S1H SW Device Connector - 3 Pole, Male, Horizontal, Black
SKU:ELE-8179b8
Get reliable power transmission with the Wieland GST18I3L S1H SW Device Connector - 3 Pole, Male, Indoor Rated
Regular price
$15.99
Regular price
Sale price
$15.99
Unit price
per
Initiate Order
Wieland GST18I3L S1H SW Device Connector - 3 Pole, Male, Horizontal, Black
$15.99
Quantity: 1
Claim Your Seller Account
Wieland GST18I3L S1H SW Device Connector - 3 Pole, Male, Horizontal, Black
$15.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland GST18I3L S1H SW Device Connector is a high-quality solution designed for indoor electrical connections. With a rated current of 20 A and a maximum rated voltage of 600 V, this 3-pole connector ensures reliable power transmission. The self-locking feature provides added security, while the black color-coding facilitates easy identification. Constructed with polyamide housing and halogen-free materials, this connector is environmentally friendly and ensures safe operation. Meeting RoHS conformity standards, this connector is a durable and compliant choice for various applications.
Product Specifications
Classification Eclass 81 Classification
27440602
Classification Etim 40 Classification
EC002566
Classification Etim 50 Classification
EC002566
Classification Etim 60 Classification
EC002566
Classification Etim 70 Classification
EC002566
Connection Data Terminations Per Pole
1

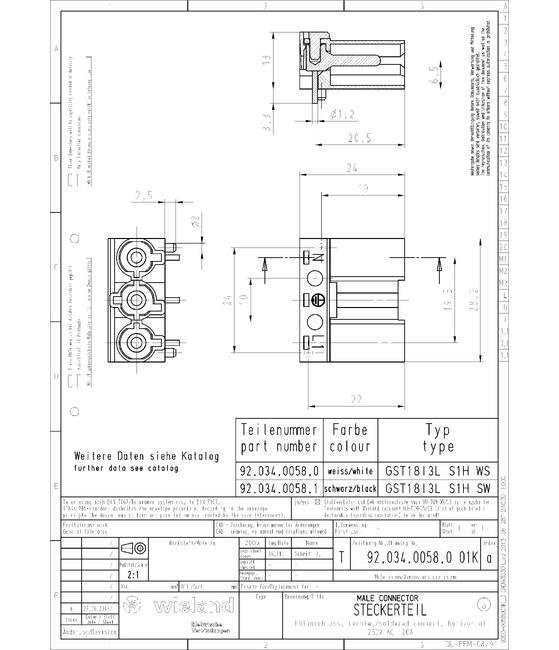

Dimensions Height
13 mm
Dimensions Length
24 mm
Dimensions Width
28.2 mm
General Brands
Wieland
General Color Of Codingcontact Carrier
Black
General Lockable
Self-Locking (Unlocking by Hand)
General Marking Of Poles
L | N | PE
General Maximum Rated Voltage
600 V
General Mechanical Coding
Code 1
General Model
GST18I3L S1H SW
General Number Of Poles
3
General Pollution Degree
2
General Rated Current
20 A
General Rated Impulse Voltage
4 kV
Material Contact Material
Copper Zinc (CuZn)
Material Fire Load
0.026 kW·h
Material Halogen Free
Yes
Material Housing Material
Polyamide
Material Insulation Components Continuous Temperature
100 ºC
Material Surface Finish
Tin-Plated
Model Angle Of Plug
Square
Model Connection Type
Soldering Connection
Model Degree Of Protection
IP20
Model Inclination Angle
90 º
Model Remark To Type Of Connection
Soldering connection
Model Type
Male
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
Product Compliance Rohs Conformity Status
Compliant with Exceptions
Product Compliance Rohs Exceptions
III-6(c)
