Wieland GST18I3S 3-Pole Indoor Connector
Wieland GST18I3S 3-Pole Indoor Connector
SKU:ELE-ce5614
Wieland GST18I3S B1 ZR1 WS Indoor Connector - 3-Pole, 20A, White Color, Self-Locking, Halogen-Free, RoHS Compliant
Regular price
$28.99
Regular price
Sale price
$28.99
Unit price
per
Initiate Order
Wieland GST18I3S 3-Pole Indoor Connector
$28.99
Quantity: 1
Claim Your Seller Account
Wieland GST18I3S 3-Pole Indoor Connector
$28.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

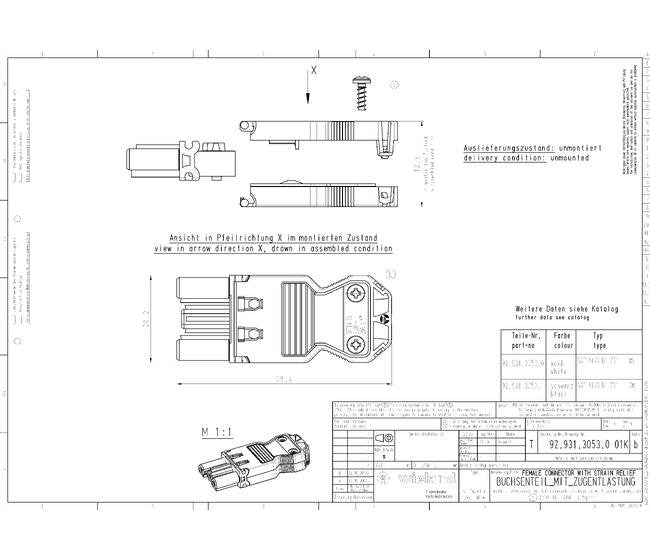

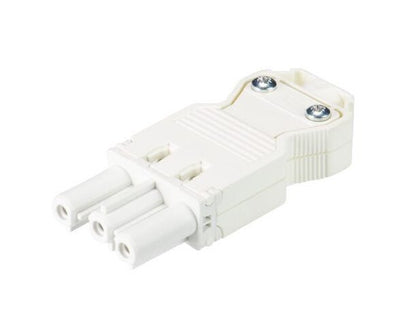

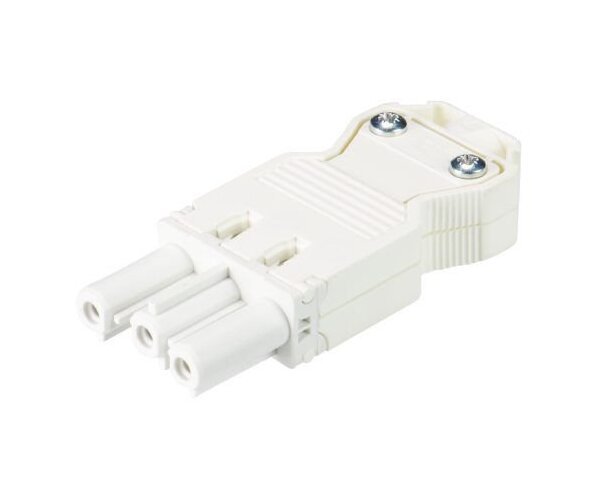

The Wieland GST18I3S B1 ZR1 WS Indoor Connector is a reliable electrical connector designed for indoor applications. With a maximum rated voltage of 600 V and a rated current of 20 A, this 3-pole female connector ensures secure connections. The white color and strain relief feature provide both visual clarity and mechanical support. Its self-locking mechanism with tool-assisted unlocking offers added security. Crafted with polyamide housing and copper zinc contacts, this connector meets RoHS conformity standards and is halogen-free for environmental safety. The Wieland connector is compact, measuring 69.4mm x 28.2mm x 12.6mm, making it ideal for various electrical installations.
Product Specifications
Classification Eclass 81 Classification
27440605
Classification Etim 40 Classification
EC002560
Classification Etim 50 Classification
EC002560
Classification Etim 60 Classification
EC002560
Classification Etim 70 Classification
EC002560
Connection Data Maximum Cable Diameter
10.5 mm
Connection Data Maximum Fine Stranded Connection Cross Section
2.5 mm²
Connection Data Maximum Solid Connection Cross Section
2.5 mm²
Connection Data Minimum Cable Diameter
6.5 mm
Connection Data Minimum Fine Stranded Connection Cross Section
0.75 mm²
Connection Data Minimum Solid Connection Cross Section
0.75 mm²
Connection Data Sheath Strip Length
38.5 mm
Connection Data Terminations Per Pole
1
Connection Data Wire Strip Length
7 mm
Dimensions Height
12.6 mm
Dimensions Length
69.4 mm
Dimensions Width
28.2 mm
General Brands
Wieland
General Color Of Codingcontact Carrier
White
General Color Of Housing Inclusive Strain Relief
White
General Lockable
Self-Locking (Unlocking by Tool)
General Marking Of Poles
L | N | PE
General Maximum Rated Voltage
600 V
General Mechanical Coding
Code 1
General Model
GST18I3S B1 ZR1 WS
General Number Of Poles
3
General Pollution Degree
2
General Rated Current
20 A
General Rated Impulse Voltage
4 kV
General Strain Relief
Yes
Material Contact Material
Copper Zinc (CuZn)
Material Fire Load
0.09 kW·h
Material Halogen Free
Yes
Material Housing Material
Polyamide
Material Surface Finish
Tin-Plated
Model Connection Type
Female
Model Degree Of Protection Ip
IP20
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
