Wieland GST18I3S B1 R V WS Device Connector
Wieland GST18I3S B1 R V WS Device Connector
SKU:ELE-a28db9
Reliable Wieland GST18I3S Connector, 3-Pole Female, 20A, 600V, White, Indoor Rated, RoHS Compliant
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Wieland GST18I3S B1 R V WS Device Connector
$24.99
Quantity: 1
Claim Your Seller Account
Wieland GST18I3S B1 R V WS Device Connector
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

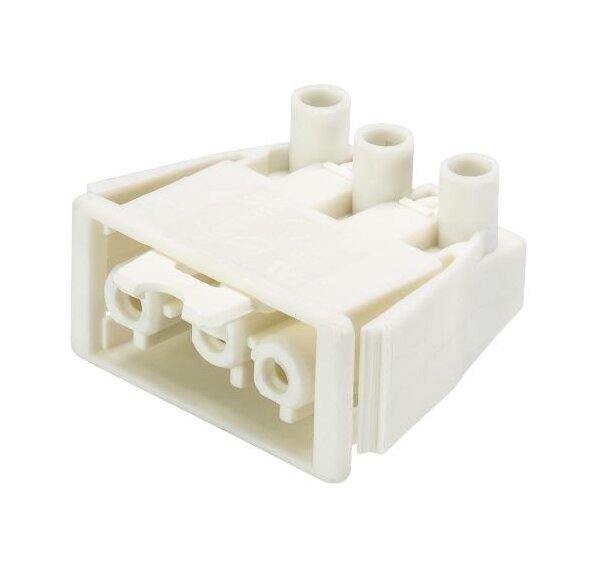

The Wieland GST18I3S B1 R V WS Device Connector is a high-quality 3-pole female connector designed for snap-in panel mounting. With a rated current of 20 A and a maximum rated voltage of 600 V, this connector ensures reliable electrical connections. It features a self-locking mechanism for security, white color coding, and is suitable for indoor use with a fire load of 0.05 kW·h. The polyamide housing is halogen-free and the copper zinc contact material offers durability and stability. This connector complies with RoHS standards and is ideal for institutional and government procurement due to its compliance with industry-specific certifications.
Product Specifications
Classification Eclass 81 Classification
27440602
Classification Etim 40 Classification
EC002566
Classification Etim 50 Classification
EC002566
Classification Etim 60 Classification
EC002566
Classification Etim 70 Classification
EC002566
Connection Data Maximum Fine Stranded Connection Cross Section
4 mm²
Connection Data Maximum Solid Connection Cross Section
4 mm²
Connection Data Minimum Fine Stranded Connection Cross Section
0.75 mm²
Connection Data Minimum Solid Connection Cross Section
0.75 mm²
Connection Data Terminations Per Pole
1
Connection Data Wire Strip Length
9 mm
Dimensions Height
21 mm
Dimensions Length
30.3 mm
Dimensions Width
32.8 mm
General Brands
Wieland
General Color Of Codingcontact Carrier
White
General Lockable
Self-Locking (Unlocking by Hand)
General Marking Of Poles
L | N | PE
General Maximum Rated Voltage
600 V
General Mechanical Coding
Code 1
General Model
GST18I3S B1 R V WS
General Number Of Poles
3
General Pollution Degree
2
General Rated Current
20 A
General Rated Impulse Voltage
4 kV
Material Contact Material
Copper Zinc (CuZn)
Material Fire Load
0.05 kW·h
Material Halogen Free
Yes
Material Housing Material
Polyamide
Material Insulation Components Continuous Temperature
100 ºC
Material Surface Finish
Tin-Plated
Model Angle Of Plug
Straight
Model Built In Component
Snap-In
Model Connection Type
Screw Connection
Model Degree Of Protection
IP20
Model Remark To Type Of Connection
Fine stranded wires 4 mm² only without ferrules
Model Thickness Of Housings Electrical Device
1.5 mm
Model Thickness Of Housings Electrical Device 2
0.5 mm
Model Type
Female
Product Compliance Reach Svhc Cas Numbers
7439-92-1
