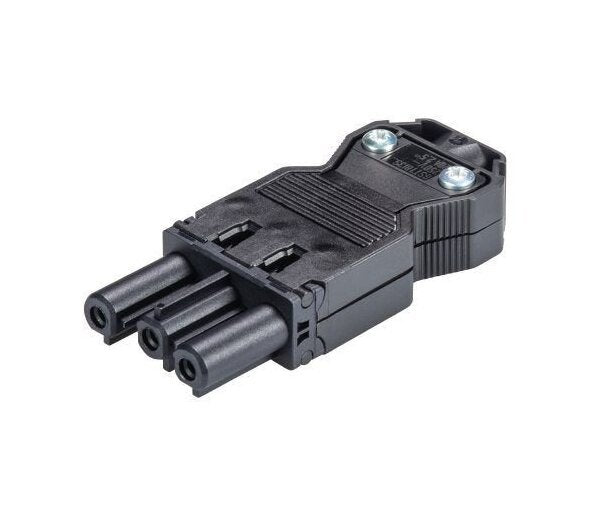

The Wieland GST18I3S B1 ZR1 SW 3-Pole Electrical Connector is a high-quality female connector designed for indoor use with a maximum rated voltage of 600V and a rated current of 20A. Featuring a strain relief for secure connections, mechanical coding for easy identification, and self-locking capability, this connector ensures reliable performance. With a compact size and durable construction using polyamide housing and copper zinc contacts, it meets RoHS conformity and REACH-SVHC compliance, making it ideal for a wide range of applications.
Product Specifications
Classification Eclass 81 Classification
27440605
Classification Etim 40 Classification
EC002560
Classification Etim 50 Classification
EC002560
Classification Etim 60 Classification
EC002560
Classification Etim 70 Classification
EC002560
Connection Data Maximum Cable Diameter
10.5 mm
Connection Data Maximum Fine Stranded Connection Cross Section
2.5 mm²
Connection Data Maximum Solid Connection Cross Section
2.5 mm²
Connection Data Minimum Cable Diameter
6.5 mm
Connection Data Minimum Fine Stranded Connection Cross Section
0.75 mm²
Connection Data Minimum Solid Connection Cross Section
0.75 mm²
Connection Data Sheath Strip Length
38.5 mm
Connection Data Terminations Per Pole
1
Connection Data Wire Strip Length
7 mm

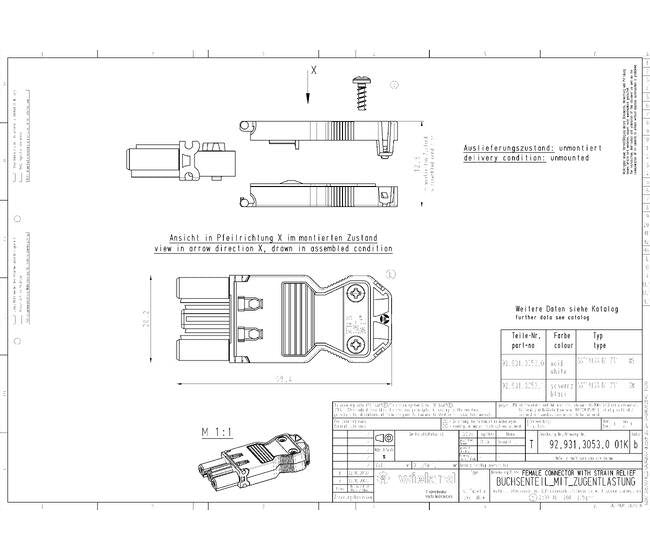

Dimensions Height
12.6 mm
Dimensions Length
69.4 mm
Dimensions Width
28.2 mm
General Brands
Wieland
General Color Of Codingcontact Carrier
Black
General Lockable
Self-Locking (Unlocking by Tool)
General Marking Of Poles
L | N | PE
General Maximum Rated Voltage
600 V
General Mechanical Coding
Code 1
General Model
CONNECTOR GST18I3S B1 ZR1 SW
General Number Of Poles
3
General Pollution Degree
2
General Rated Current
20 A
General Rated Impulse Voltage
4 kV
General Strain Relief
Yes
Material Contact Material
Copper Zinc (CuZn)
Material Fire Load
0.089 kW·h
Material Halogen Free
Yes
Material Housing Material
Polyamide
Material Surface Finish
Tin-Plated
Model Connection Type
Female
Model Degree Of Protection Ip
IP20
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
Product Compliance Rohs Conformity Status
Compliant/Exempted
