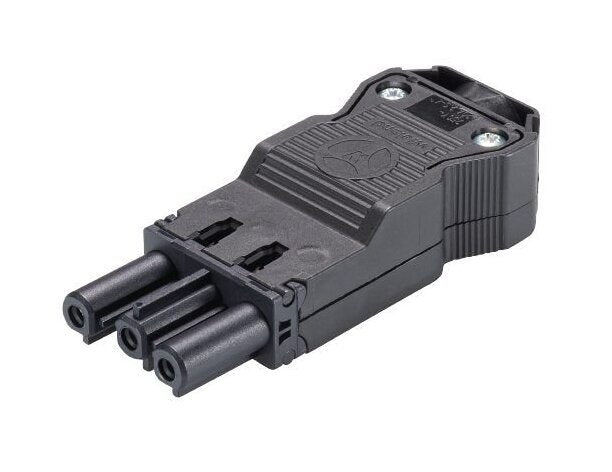

Wieland GST18I3S B1 ZR2 SW 3-Pole Female Electrical Connector
Wieland GST18I3S B1 ZR2 SW 3-Pole Female Electrical Connector
SKU:ELE-2ee4f3
Reliable Wieland 3-pole female connector for indoor use, 20A, 600V, self-locking, RoHS & REACH compliant
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Wieland GST18I3S B1 ZR2 SW 3-Pole Female Electrical Connector
$24.99
Quantity: 1
Claim Your Seller Account
Wieland GST18I3S B1 ZR2 SW 3-Pole Female Electrical Connector
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland GST18I3S B1 ZR2 SW Electrical Connector is a high-quality 3-pole female connector designed for indoor electrical applications. With a rated current of 20 A and a maximum voltage of 600 V, this connector offers reliable performance. It features a self-locking mechanism for secure connections, black coding for easy identification, and a strain relief for added durability. Compliant with RoHS and REACH-SVHC standards, this connector meets industry requirements for safety and sustainability.
Product Specifications
Classification Eclass 81 Classification
27440605
Classification Etim 40 Classification
EC002560
Classification Etim 50 Classification
EC002560
Classification Etim 60 Classification
EC002560
Classification Etim 70 Classification
EC002560
Connection Data Maximum Cable Diameter
14.5 mm
Connection Data Maximum Fine Stranded Connection Cross Section
4 mm²
Connection Data Maximum Solid Connection Cross Section
4 mm²
Connection Data Minimum Cable Diameter
10.5 mm
Connection Data Minimum Fine Stranded Connection Cross Section
0.75 mm²
Connection Data Minimum Solid Connection Cross Section
0.75 mm²
Connection Data Terminations Per Pole
1
Dimensions Height
17 mm
Dimensions Length
77.5 mm
Dimensions Width
32 mm
General Brands
Wieland
General Color Of Codingcontact Carrier
Black
General Color Of Housing Inclusive Strain Relief
Black
General Lockable
Self-Locking (Unlocking by Tool)
General Marking Of Poles
L | N | PE
General Maximum Rated Voltage
600 V
General Mechanical Coding
Code 1
General Model
CONNECTOR GST18I3S B1 ZR2 SW
General Number Of Poles
3
General Pollution Degree
2
General Rated Current
20 A
General Rated Impulse Voltage
4 kV
General Strain Relief
Yes
Material Contact Material
Copper Zinc (CuZn)
Material Fire Load
0.108 kW·h
Material Halogen Free
Yes
Material Housing Material
Polyamide
Material Surface Finish
Tin-Plated
Model Connection Type
Female
Model Degree Of Protection Ip
IP20
Note Remark To Type Of Connection
Fine stranded wires 4 mm² only without ferrules
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
Product Compliance Rohs Conformity Status
Compliant/Exempted
