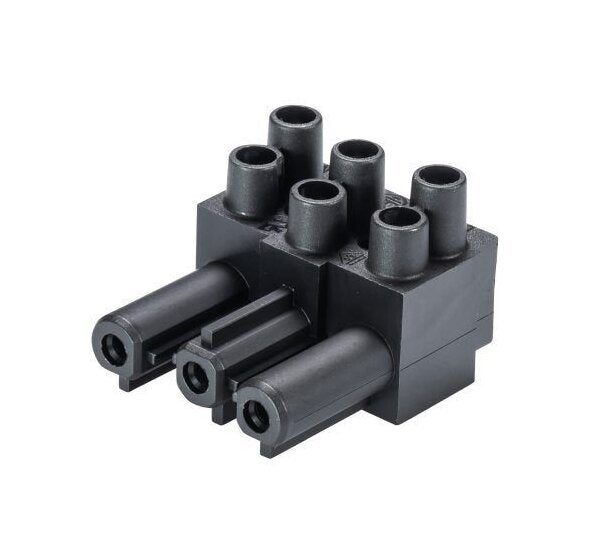

The Wieland GST18I3S B2 SW Splitter is the ideal electrical connector for indoor applications. This 3-pole female connector features a screw connection for secure installations. With a maximum rated voltage of 600V and a rated current of 20A, this splitter ensures reliable power distribution. The self-locking design with black color-coding enhances safety and ease of use. Constructed with halogen-free polyamide housing and copper zinc contacts, this splitter prioritizes durability and safety. Compliant with RoHS and REACH-SVHC regulations, it meets environmental standards without compromising performance.
Product Specifications
Classification Eclass 81 Classification
27440602
Classification Etim 40 Classification
EC002566
Classification Etim 50 Classification
EC002566
Classification Etim 60 Classification
EC002566
Classification Etim 70 Classification
EC002566
Connection Data Maximum Fine Stranded Connection Cross Section
4 mm²
Connection Data Maximum Solid Connection Cross Section
4 mm²
Connection Data Minimum Fine Stranded Connection Cross Section
0.75 mm²
Connection Data Minimum Solid Connection Cross Section
0.75 mm²
Connection Data Terminations Per Pole
2
Connection Data Wire Strip Length
7 mm

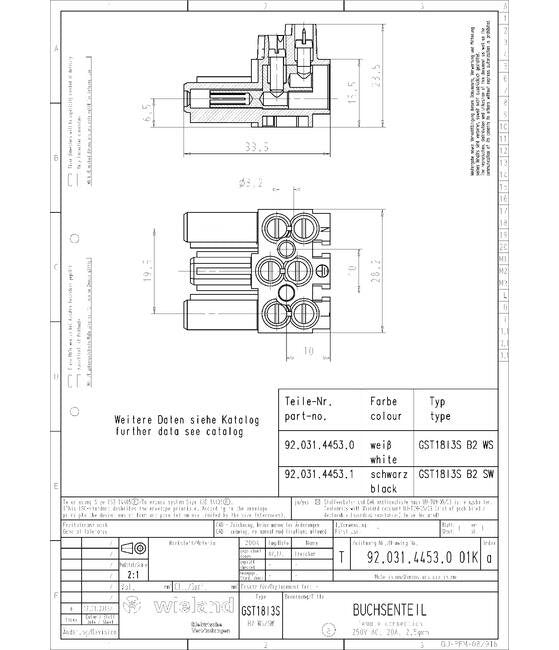

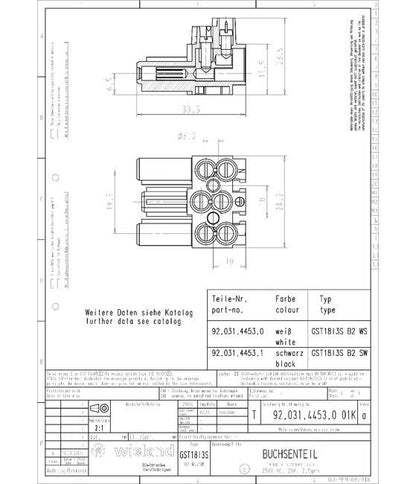

Dimensions Height
23.5 mm
Dimensions Length
33.5 mm
Dimensions Width
28.2 mm
General Brands
Wieland
General Color Of Codingcontact Carrier
Black
General Connector Type
Female
General Lockable
Self-Locking (Unlocking by Hand)
General Marking Of Poles
L | N | PE
General Maximum Rated Voltage
600 V
General Mechanical Coding
Code 1
General Model
GST18I3S B2 SW
General Number Of Poles
3
General Rated Current
20 A
Material Contact Material
Copper Zinc (CuZn)
Material Fire Load
0.046 kW·h
Material Halogen Free
Yes
Material Housing Material
Polyamide
Material Insulation Components Continuous Temperature
100 ºC
Material Surface Finish
Tin-Plated
Model Angle Of Plug
Straight
Model Built In Component
Built-in Component/connector
Model Connection Type
Screw Connection
Model Degree Of Protection
IP20
Model Remark To Type Of Connection
Fine stranded wires 4 mm² only without ferrules
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
Product Compliance Rohs Conformity Status
Compliant with Exceptions
Product Compliance Rohs Exceptions
III-6(c)
