Wieland GST18I3S S1 SW Electrical Connector Splitter
Wieland GST18I3S S1 SW Electrical Connector Splitter
SKU:ELE-1f4953
Reliable and efficient Wieland GST18I3S S1 SW Splitter for indoor electrical applications. Self-locking 3-pole male connector with black color-coding. Rated at 600V/20A.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Wieland GST18I3S S1 SW Electrical Connector Splitter
$24.99
Quantity: 1
Claim Your Seller Account
Wieland GST18I3S S1 SW Electrical Connector Splitter
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

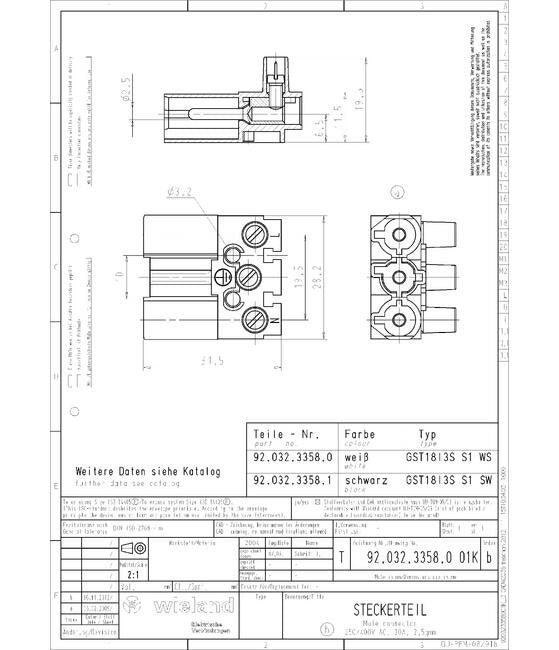

The Wieland GST18I3S S1 SW Splitter is a reliable 3-pole male connector designed for indoor electrical applications. With a maximum rated voltage of 600 V and a rated current of 20 A, this connector ensures stable power distribution. The self-locking feature and black color-coding make installation hassle-free. Made of halogen-free polyamide with copper zinc contacts, it meets RoHS conformity standards. Its compact dimensions of 31.5mm x 28.2mm x 19.5mm make it space-efficient while offering excellent performance. Ideal for fine-stranded wires up to 4mm², it combines durability and convenience for both consumer and institutional needs.
Product Specifications
Classification Eclass 81 Classification
27440602
Classification Etim 40 Classification
EC002566
Classification Etim 50 Classification
EC002566
Classification Etim 60 Classification
EC002566
Classification Etim 70 Classification
EC002566
Connection Data Maximum Fine Stranded Connection Cross Section
4 mm²
Connection Data Maximum Solid Connection Cross Section
4 mm²
Connection Data Minimum Fine Stranded Connection Cross Section
0.75 mm²
Connection Data Minimum Solid Connection Cross Section
0.75 mm²
Connection Data Terminations Per Pole
1
Connection Data Wire Strip Length
7 mm
Dimensions Height
19.5 mm
Dimensions Length
31.5 mm
Dimensions Width
28.2 mm
General Brands
Wieland
General Color Of Codingcontact Carrier
Black
General Connector Type
Male
General Lockable
Self-Locking (Unlocking by Hand)
General Marking Of Poles
L | N | PE
General Maximum Rated Voltage
600 V
General Mechanical Coding
Code 1
General Model
GST18I3S S1 SW
General Number Of Poles
3
General Rated Current
20 A
Material Contact Material
Copper Zinc (CuZn)
Material Fire Load
0.038 kW·h
Material Halogen Free
Yes
Material Housing Material
Polyamide
Material Insulation Components Continuous Temperature
100 ºC
Material Surface Finish
Tin-Plated
Model Angle Of Plug
Straight
Model Built In Component
Built-in Component/connector
Model Connection Type
Screw Connection
Model Degree Of Protection
IP20
Model Remark To Type Of Connection
Fine stranded wires 4 mm² only without ferrules
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
Product Compliance Rohs Conformity Status
Compliant with Exceptions
Product Compliance Rohs Exceptions
III-6(c)
