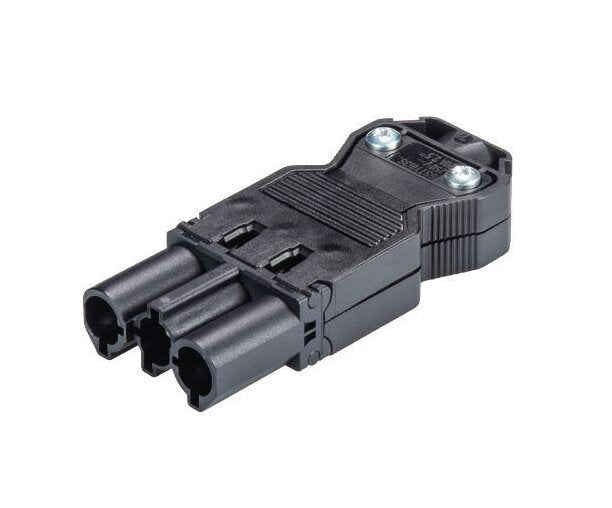

Wieland GST18I3S S1 ZR1 SW Electrical Connector (3 Pole, Male, Indoor Rated)
Wieland GST18I3S S1 ZR1 SW Electrical Connector (3 Pole, Male, Indoor Rated)
SKU:ELE-c8778a
High-quality Wieland GST18I3S S1 ZR1 SW Male Connector for secure indoor electrical connections.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Wieland GST18I3S S1 ZR1 SW Electrical Connector (3 Pole, Male, Indoor Rated)
$24.99
Quantity: 1
Claim Your Seller Account
Wieland GST18I3S S1 ZR1 SW Electrical Connector (3 Pole, Male, Indoor Rated)
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland GST18I3S S1 ZR1 SW Male Connector is a top-of-the-line electrical connector designed for indoor use, featuring 3 poles and a rated current of 20 A. With a maximum rated voltage of 600 V and a robust strain relief mechanism, this connector ensures secure and reliable electrical connections. The black color housing with strain relief adds durability and aesthetic appeal. Wieland's self-locking mechanism and mechanical coding provide additional security and ease of use. This connector is compliant with RoHS standards and is halogen-free, making it a sustainable choice for your electrical connectivity needs.
Product Specifications
Classification Eclass 81 Classification
27440605
Classification Etim 40 Classification
EC002560
Classification Etim 50 Classification
EC002560
Classification Etim 60 Classification
EC002560
Classification Etim 70 Classification
EC002560
Connection Data Maximum Cable Diameter
10.5 mm
Connection Data Maximum Fine Stranded Connection Cross Section
2.5 mm²
Connection Data Maximum Solid Connection Cross Section
2.5 mm²
Connection Data Minimum Cable Diameter
6.5 mm
Connection Data Minimum Fine Stranded Connection Cross Section
0.75 mm²
Connection Data Minimum Solid Connection Cross Section
0.75 mm²
Connection Data Sheath Strip Length
38.5 mm
Connection Data Terminations Per Pole
1
Connection Data Wire Strip Length
7 mm

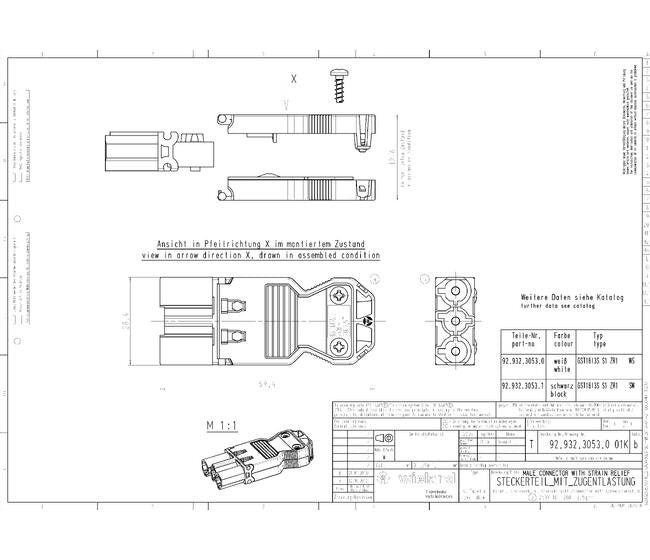

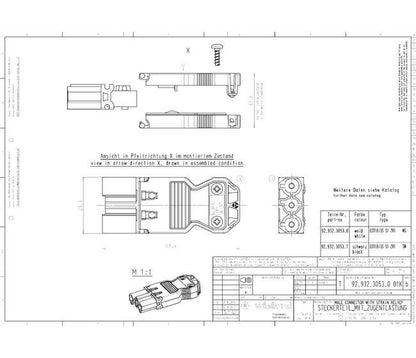

Dimensions Height
12.6 mm
Dimensions Length
69.4 mm
Dimensions Width
28.2 mm
General Brands
Wieland
General Color Of Codingcontact Carrier
Black
General Color Of Housing Inclusive Strain Relief
Black
General Lockable
Self-Locking (Unlocking by Tool)
General Marking Of Poles
L | N | PE
General Maximum Rated Voltage
600 V
General Mechanical Coding
Code 1
General Model
CONNECTOR GST18I3S S1 ZR1 SW
General Number Of Poles
3
General Pollution Degree
2
General Rated Current
20 A
General Rated Impulse Voltage
4 kV
General Strain Relief
Yes
Material Contact Material
Copper Zinc (CuZn)
Material Fire Load
0.093 kW·h
Material Halogen Free
Yes
Material Housing Material
Polyamide
Material Surface Finish
Tin-Plated
Model Connection Type
Male
Model Degree Of Protection Ip
IP20
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
