Wieland GST18I3S S1 ZR1 WS Male Electrical Connector
Wieland GST18I3S S1 ZR1 WS Male Electrical Connector
SKU:ELE-8aef71
Reliable Wieland 3-pole male connector with 20A current, 600V voltage, white coding, and strain relief. RoHS compliant.
Regular price
$16.99
Regular price
Sale price
$16.99
Unit price
per
Initiate Order
Wieland GST18I3S S1 ZR1 WS Male Electrical Connector
$16.99
Quantity: 1
Claim Your Seller Account
Wieland GST18I3S S1 ZR1 WS Male Electrical Connector
$16.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

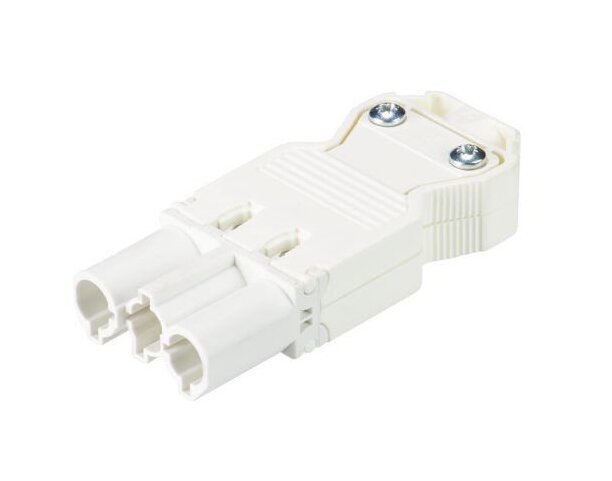

The Wieland GST18I3S S1 ZR1 WS Male Connector is a high-quality 3-pole connector designed for indoor use. With a rated current of 20 A and a maximum rated voltage of 600 V, this connector ensures reliable electrical connections. It features a self-locking mechanism, white color coding for easy identification, and strain relief for added durability. Suitable for cables with diameters ranging from 6.5 mm to 10.5 mm, this connector meets RoHS conformity standards. The housing material is polyamide, and the contact material is copper zinc, making it a reliable and long-lasting solution for your electrical connection needs.
Product Specifications
Classification Eclass 81 Classification
27440605
Classification Etim 40 Classification
EC002560
Classification Etim 50 Classification
EC002560
Classification Etim 60 Classification
EC002560
Classification Etim 70 Classification
EC002560
Connection Data Maximum Cable Diameter
10.5 mm
Connection Data Maximum Fine Stranded Connection Cross Section
2.5 mm²
Connection Data Maximum Solid Connection Cross Section
2.5 mm²
Connection Data Minimum Cable Diameter
6.5 mm
Connection Data Minimum Fine Stranded Connection Cross Section
0.75 mm²
Connection Data Minimum Solid Connection Cross Section
0.75 mm²
Connection Data Sheath Strip Length
38.5 mm
Connection Data Terminations Per Pole
1
Connection Data Wire Strip Length
7 mm

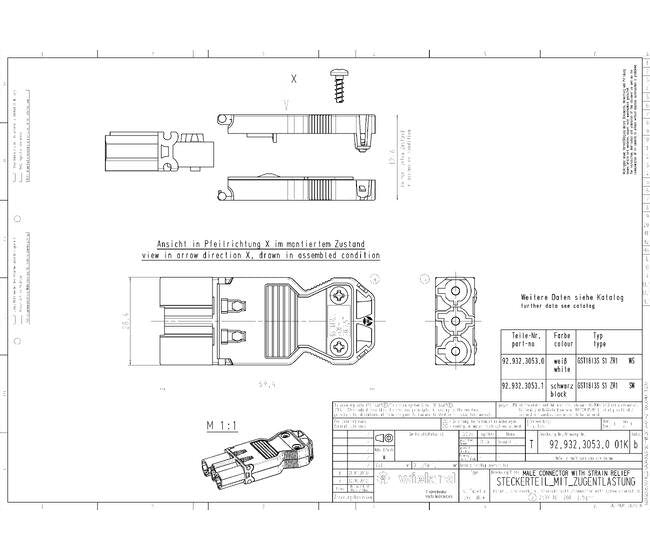

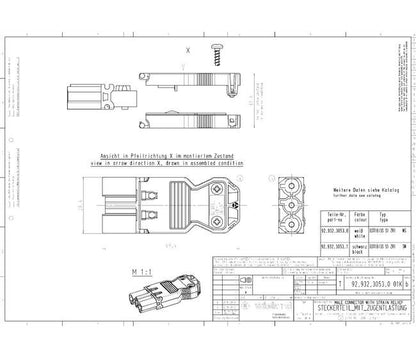

Dimensions Height
12.6 mm
Dimensions Length
69.4 mm
Dimensions Width
28.2 mm
General Brands
Wieland
General Color Of Codingcontact Carrier
White
General Color Of Housing Inclusive Strain Relief
White
General Lockable
Self-Locking (Unlocking by Tool)
General Marking Of Poles
L | N | PE
General Maximum Rated Voltage
600 V
General Mechanical Coding
Code 1
General Model
CONNECTOR GST18I3S S1 ZR1 WS
General Number Of Poles
3
General Pollution Degree
2
General Rated Current
20 A
General Rated Impulse Voltage
4 kV
General Strain Relief
Yes
Material Contact Material
Copper Zinc (CuZn)
Material Fire Load
0.093 kW·h
Material Halogen Free
Yes
Material Housing Material
Polyamide
Material Surface Finish
Tin-Plated
Model Connection Type
Male
Model Degree Of Protection Ip
IP20
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
