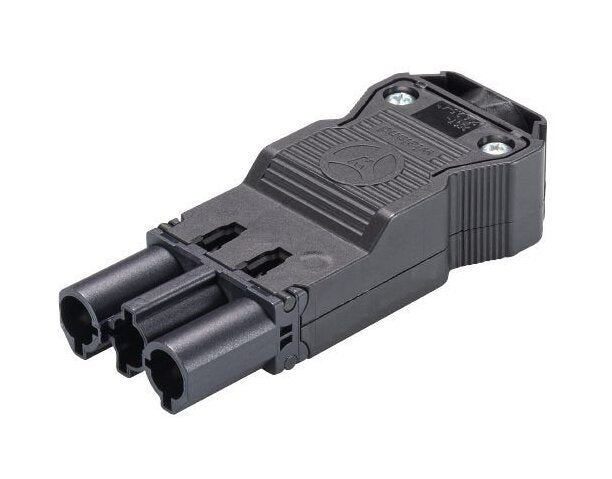

Wieland GST18I3S S1 ZR2 SW Male Connector 3-Pole
Wieland GST18I3S S1 ZR2 SW Male Connector 3-Pole
SKU:ELE-57a8fd
Durable 3-pole male connector for indoor use, self-locking screw connection with strain relief, rated up to 600V/20A. RoHS compliant.
Regular price
$15.99
Regular price
Sale price
$15.99
Unit price
per
Initiate Order
Wieland GST18I3S S1 ZR2 SW Male Connector 3-Pole
$15.99
Quantity: 1
Claim Your Seller Account
Wieland GST18I3S S1 ZR2 SW Male Connector 3-Pole
$15.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland GST18I3S S1 ZR2 SW Male Connector is a robust 3-pole electrical connector designed for indoor use, featuring a self-locking screw connection with a tall strain relief mechanism. With a maximum rated voltage of 600V and a rated current of 20A, this connector offers reliable performance. The connector is coded in black for easy identification, and the polyamide housing material ensures durability. Compliant with RoHS standards with exceptions and duty-to-declare for REACH-SVHC, this connector is a secure and efficient choice for various electrical applications.
Product Specifications
Classification Eclass 81 Classification
27440605
Classification Etim 40 Classification
EC002560
Classification Etim 50 Classification
EC002560
Classification Etim 60 Classification
EC002560
Classification Etim 70 Classification
EC002560
Connection Data Maximum Cable Diameter
14.5 mm
Connection Data Maximum Fine Stranded Connection Cross Section
4 mm²
Connection Data Maximum Solid Connection Cross Section
4 mm²
Connection Data Minimum Cable Diameter
10.5 mm
Connection Data Minimum Fine Stranded Connection Cross Section
0.75 mm²
Connection Data Minimum Solid Connection Cross Section
0.75 mm²
Dimensions Height
17 mm
Dimensions Length
77.5 mm
Dimensions Width
32 mm
General Brands
Wieland
General Color Of Codingcontact Carrier
Black
General Color Of Housing Inclusive Strain Relief
Black
General Lockable
Self-Locking (Unlocking by Tool)
General Marking Of Poles
L | N | PE
General Maximum Rated Voltage
600 V
General Mechanical Coding
Code 1
General Model
CONNECTOR GST18I3S S1 ZR2 SW
General Number Of Poles
3
General Pollution Degree
2
General Rated Current
20 A
General Rated Impulse Voltage
4 kV
General Strain Relief
Yes
Material Contact Material
Copper Zinc (CuZn)
Material Fire Load
0.112 kW·h
Material Halogen Free
Yes
Material Housing Material
Polyamide
Material Surface Finish
Tin-Plated
Model Connection Type
Male
Model Degree Of Protection Ip
IP20
Note Remark To Type Of Connection
Fine stranded wires 4 mm² only without ferrules
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
Product Compliance Rohs Conformity Status
Compliant with Exceptions
Product Compliance Rohs Exceptions
III-6(c)
