Wieland GST18I3V 5P1 BV WS Splitter - 3 Pole, 1 IN, 5 OUT, White
Wieland GST18I3V 5P1 BV WS Splitter - 3 Pole, 1 IN, 5 OUT, White
SKU:ELE-f40b6e
High-quality Wieland GST18I3V Splitter - 3 Pole, 20A, 600V, IP20, White Coding
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Wieland GST18I3V 5P1 BV WS Splitter - 3 Pole, 1 IN, 5 OUT, White
$49.99
Quantity: 1
Claim Your Seller Account
Wieland GST18I3V 5P1 BV WS Splitter - 3 Pole, 1 IN, 5 OUT, White
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

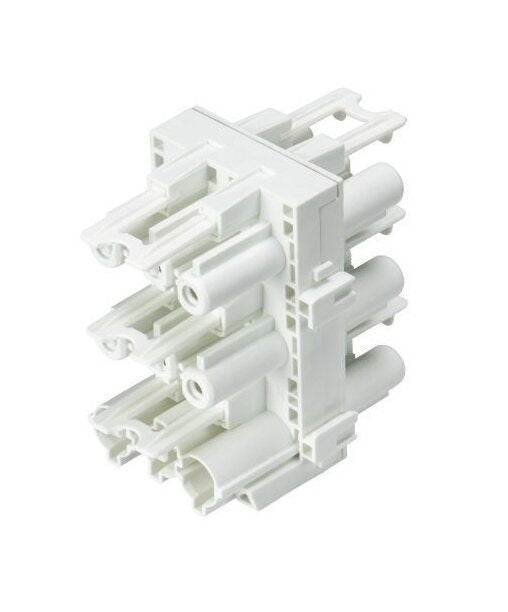

The Wieland GST18I3V 5P1 BV WS Splitter is a high-quality 3 pole electrical connector designed for indoor use. With 1 input and 5 outputs, this HH-distributor offers self-locking capability and a mechanical coding in white for easy identification. Rated at 20A and 600V, it features a polyamide housing, copper zinc contacts, and IP20 protection. This splitter meets RoHS standards with exceptions and REACH-SVHC Duty-To-Declare compliance with lead substances.
Product Specifications
Classification Eclass 81 Classification
27440603
Classification Etim 40 Classification
EC002567
Classification Etim 50 Classification
EC002567
Classification Etim 60 Classification
EC002567
Classification Etim 70 Classification
EC002567
Dimensions Height
52.5 mm
Dimensions Length
58 mm
Dimensions Width
34.9 mm
General Brands
Wieland
General Color Of Codingcontact Carrier
White
General Lockable
Self-Locking (Unlocking by Hand)
General Marking Of Poles
L | N | PE
General Maximum Rated Voltage
600 V
General Mechanical Coding
Code 1
General Model
GST18I3V 5P1 BV WS
General Number Of Poles
3
General Rated Current
20 A
Material Contact Material
Copper Zinc (CuZn)
Material Fire Load
0.222 kW·h
Material Halogen Free
Yes
Material Housing Material
Polyamide
Material Insulation Components Continuous Temperature
100 ºC
Material Surface Finish
Silver-Plated
Model Degree Of Protection
IP20
Model Number Of Inputs
1
Model Number Of Outputs
5
Model Type Of Distributor
HH-distributor
Model Type Of Fastening
Yes
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
Product Compliance Rohs Conformity Status
Compliant with Exceptions
Product Compliance Rohs Exceptions
III-6(c)
