Wieland GST18I3V Splitter with 1 Input and 5 Outputs
Wieland GST18I3V Splitter with 1 Input and 5 Outputs
SKU:ELE-9eec67
High-quality Wieland splitter with 3 poles, 1 input, 5 outputs, 600V max voltage, and RoHS compliance.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Wieland GST18I3V Splitter with 1 Input and 5 Outputs
$29.99
Quantity: 1
Claim Your Seller Account
Wieland GST18I3V Splitter with 1 Input and 5 Outputs
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

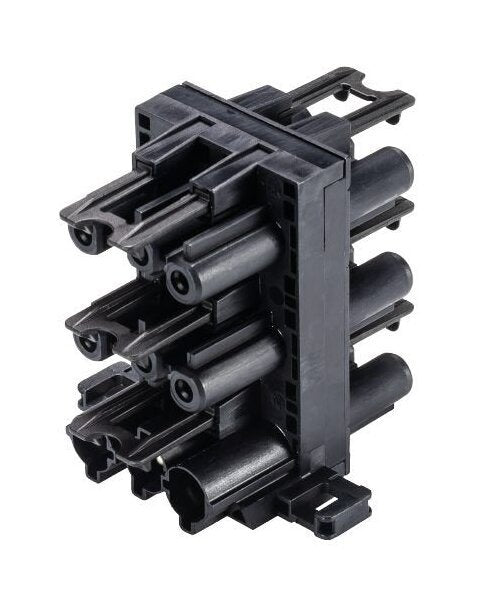

The Wieland GST18I3V 5P1 F V SW Splitter is a high-quality distribution block designed for indoor electrical connectivity. Featuring 3 poles, 1 input, and 5 outputs with a mounting option, this splitter operates at a maximum rated voltage of 600V and a rated current of 20A. The black color-coding ensures easy identification, while its self-locking mechanism and polyamide housing offer durability and safety. With compliance to RoHS standards, lead-free materials, and excellent insulation components, this splitter is a reliable choice for both consumer and institutional applications.
Product Specifications
Classification Eclass 81 Classification
27440603
Classification Etim 40 Classification
EC002567
Classification Etim 50 Classification
EC002567
Classification Etim 60 Classification
EC002567
Classification Etim 70 Classification
EC002567
Dimensions Height
52.5 mm
Dimensions Length
44 mm
Dimensions Width
52 mm
General Brands
Wieland
General Color Of Codingcontact Carrier
Black
General Lockable
Self-Locking (Unlocking by Tool)
General Marking Of Poles
L, N, PE
General Maximum Rated Voltage
600 V
General Mechanical Coding
Code 1
General Number Of Poles
3
General Rated Current
20 A
Material Contact Material
Copper Zinc (CuZn)
Material Fire Load
0.217 kW·h
Material Halogen Free
Yes
Material Housing Material
Polyamide
Material Insulation Components Continuous Temperature
100 ºC
Material Surface Finish
Silver-Plated
Model Degree Of Protection Ip
IP20
Model Number Of Inputs
1
Model Number Of Outputs
5
Model Type Of Distributor
HH-distributor
Model Type Of Fastening
Yes
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
Product Compliance Rohs Conformity Status
Compliant/Exempted
Product Compliance Rohs Exceptions
III-6(c)
