Wieland GST18I4F Device Connector - 4 Pole, 20A, Spring Clamp, Indoor Rated
Wieland GST18I4F Device Connector - 4 Pole, 20A, Spring Clamp, Indoor Rated
SKU:ELE-de590a
Wieland GST18I4F Device Connector: Reliable 4-pole, 20A spring clamp connector for indoor electrical applications. RoHS compliant.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Wieland GST18I4F Device Connector - 4 Pole, 20A, Spring Clamp, Indoor Rated
$24.99
Quantity: 1
Claim Your Seller Account
Wieland GST18I4F Device Connector - 4 Pole, 20A, Spring Clamp, Indoor Rated
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

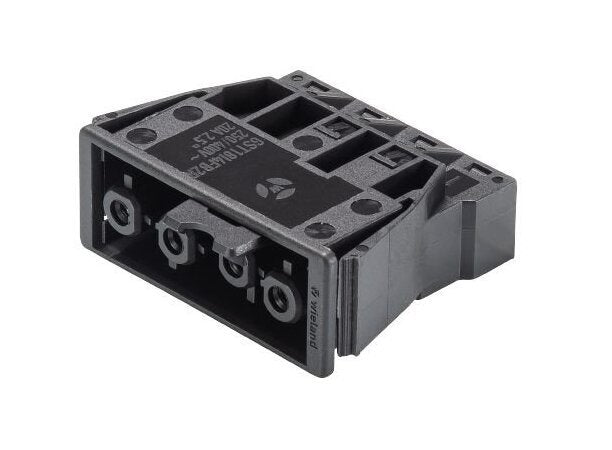

The Wieland GST18I4F B2 R V SW Device Connector is a reliable solution for indoor electrical connections. With 4 poles, rated for 20A at 250/400V, featuring a self-locking spring clamp connection for easy installation. The housing material is halogen-free polyamide, ensuring safety and durability. This connector meets RoHS compliance standards and is suitable for use in various institutional and government applications.
Product Specifications
Classification Eclass 81 Classification
27440602
Classification Etim 40 Classification
EC002566
Classification Etim 50 Classification
EC002566
Classification Etim 60 Classification
EC002566
Classification Etim 70 Classification
EC002566
Connection Data Maximum Fine Stranded Connection Cross Section
1.5 mm²
Connection Data Maximum Solid Connection Cross Section
2.5 mm²
Connection Data Minimum Fine Stranded Connection Cross Section
0.5 mm²
Connection Data Minimum Solid Connection Cross Section
0.5 mm²
Connection Data Terminations Per Pole
2
Connection Data Wire Strip Length
9 mm

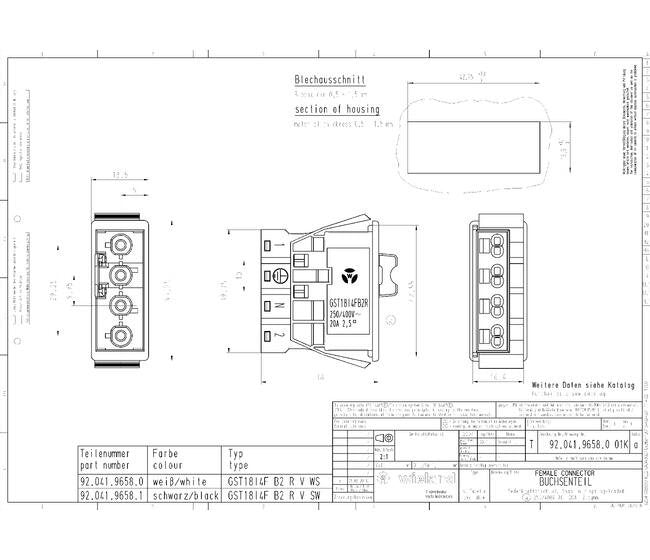

Dimensions Height
18.5 mm
Dimensions Length
38 mm
Dimensions Width
42.5 mm
General Brands
Wieland
General Color Of Codingcontact Carrier
Black
General Lockable
Self-Locking (Unlocking by Hand)
General Marking Of Poles
1 | 2 | N | PE
General Maximum Rated Voltage
600 V
General Mechanical Coding
Code 1
General Model
GST18I4F B2 R V SW
General Number Of Poles
4
General Pollution Degree
2
General Rated Current
20 A
General Rated Impulse Voltage
4 kV
Material Contact Material
Copper Zinc (CuZn)
Material Fire Load
0.085 kW·h
Material Halogen Free
Yes
Material Housing Material
Polyamide
Material Insulation Components Continuous Temperature
100 ºC
Material Surface Finish
Silver-Plated
Model Angle Of Plug
Straight
Model Built In Component
Snap-In
Model Connection Type
Spring Clamp Connection
Model Degree Of Protection
IP20
Model Remark To Type Of Connection
Fine stranded and stranded conductors require cable end sleeve
Model Thickness Of Housings Electrical Device
1.5 mm
Model Thickness Of Housings Electrical Device 2
0.5 mm
Model Type
Female
Product Compliance Reach Svhc Cas Numbers
7439-92-1
