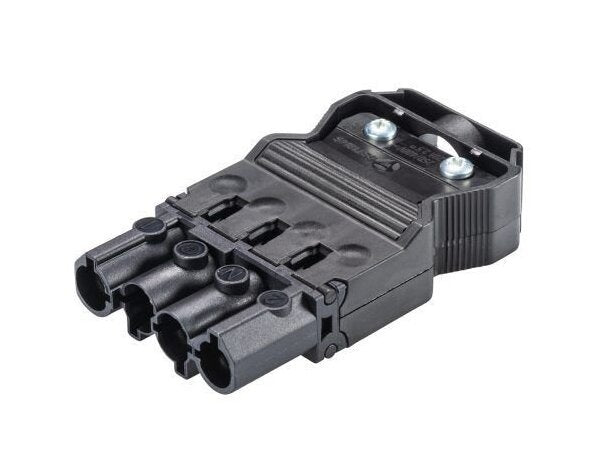

Wieland GST18I4S S1 ZR1 SW 4-Pole Male Connector
Wieland GST18I4S S1 ZR1 SW 4-Pole Male Connector
SKU:ELE-9719a9
Wieland 4-Pole Male Connector for secure indoor electrical connections. Self-locking mechanism, strain relief, RoHS compliant.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Wieland GST18I4S S1 ZR1 SW 4-Pole Male Connector
$24.99
Quantity: 1
Claim Your Seller Account
Wieland GST18I4S S1 ZR1 SW 4-Pole Male Connector
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland GST18I4S S1 ZR1 SW Male Connector is designed for indoor electrical connections with a maximum rated voltage of 600 V and a rated current of 20 A. It features a self-locking mechanism with mechanical coding, strain relief for secure installation, and black housing for easy identification. This connector meets RoHS compliance standards and offers a compact design with easy cable terminations, making it ideal for both consumer and institutional applications.
Product Specifications
Classification Eclass 81 Classification
27440605
Classification Etim 40 Classification
EC002560
Classification Etim 50 Classification
EC002560
Classification Etim 60 Classification
EC002560
Classification Etim 70 Classification
EC002560
Connection Data Maximum Cable Diameter
11.5 mm
Connection Data Maximum Fine Stranded Connection Cross Section
2.5 mm²
Connection Data Maximum Solid Connection Cross Section
2.5 mm²
Connection Data Minimum Cable Diameter
6.8 mm
Connection Data Minimum Fine Stranded Connection Cross Section
0.75 mm²
Connection Data Minimum Solid Connection Cross Section
0.75 mm²
Connection Data Sheath Strip Length
38.5 mm
Connection Data Terminations Per Pole
2
Connection Data Wire Strip Length
7 mm

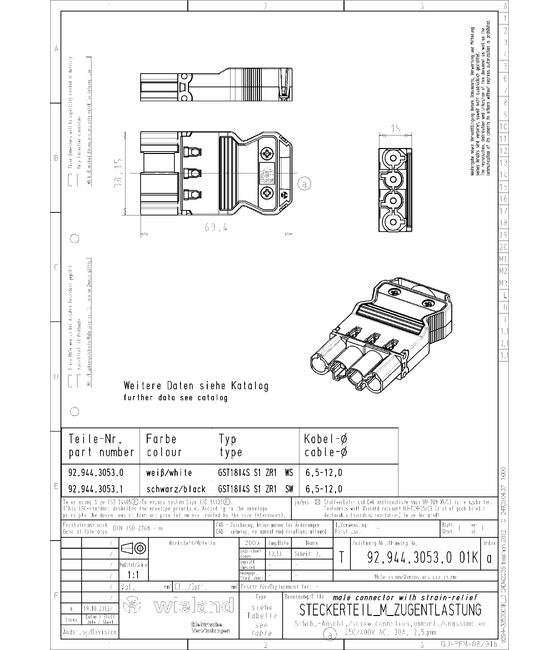

Dimensions Height
15 mm
Dimensions Length
69.4 mm
Dimensions Width
38 mm
General Brands
Wieland
General Color Of Codingcontact Carrier
Black
General Color Of Housing Inclusive Strain Relief
Black
General Lockable
Self-Locking (Unlocking by Tool)
General Marking Of Poles
1 | 2 | N | PE
General Maximum Rated Voltage
600 V
General Mechanical Coding
Code 1
General Model
CONNECTOR GST18I4S S1 ZR1 SW
General Number Of Poles
4
General Pollution Degree
2
General Rated Current
20 A
General Rated Impulse Voltage
4 kV
General Strain Relief
Yes
Material Contact Material
Copper Zinc (CuZn)
Material Fire Load
0.122 kW·h
Material Halogen Free
Yes
Material Housing Material
Polyamide
Material Surface Finish
Tin-Plated
Model Connection Type
Male
Model Degree Of Protection Ip
IP20
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
