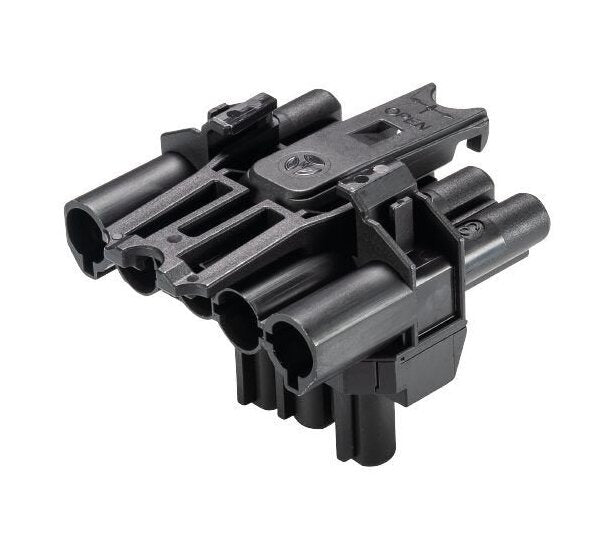

Wieland GST18i5 T-Distributor Splitter with Mounting Plate, 5-Pole, 1 IN 2 OUT, 20A, Black
Wieland GST18i5 T-Distributor Splitter with Mounting Plate, 5-Pole, 1 IN 2 OUT, 20A, Black
SKU:ELE-53211b
Efficient Wieland 5-Pole T-Distributor Splitter for phase selection with 1 IN 2 OUT design, 20A, RoHS & REACH compliant
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Wieland GST18i5 T-Distributor Splitter with Mounting Plate, 5-Pole, 1 IN 2 OUT, 20A, Black
$39.99
Quantity: 1
Claim Your Seller Account
Wieland GST18i5 T-Distributor Splitter with Mounting Plate, 5-Pole, 1 IN 2 OUT, 20A, Black
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland GST18i5 T-Distributor Splitter is designed for efficient phase selection, featuring 5 poles, self-locking mechanism, and a maximum rated voltage of 600V. With durable polyamide housing, copper zinc contacts, and halogen-free materials, it ensures safety and reliability. This splitter meets RoHS and REACH compliance, making it suitable for institutional and government procurement that prioritize environmental standards.
Product Specifications
Classification Eclass 81 Classification
27440603
Classification Etim 40 Classification
EC002567
Classification Etim 50 Classification
EC002567
Classification Etim 60 Classification
EC002567
Classification Etim 70 Classification
EC002567
Dimensions Height
44.8 mm
Dimensions Length
57.3 mm
Dimensions Width
47.9 mm
General Brands
Wieland
General Color Of Codingcontact Carrier
Black
General Lockable
Self-Locking (Unlocking by Tool)
General Marking Of Poles
3, N, PE, 2, 1
General Maximum Rated Voltage
600 V
General Mechanical Coding
Code 1
General Number Of Poles
5
General Rated Current
20 A
Material Contact Material
Copper Zinc (CuZn)
Material Fire Load
0.133 kW·h
Material Halogen Free
Yes
Material Housing Material
Polyamide
Material Insulation Components Continuous Temperature
100 ºC
Material Surface Finish
Silver-Plated
Model Degree Of Protection Ip
IP20
Model Number Of Inputs
1
Model Number Of Outputs
2
Model Type Of Distributor
T-Distributor for phase selection
Model Type Of Fastening
Yes
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
Product Compliance Rohs Conformity Status
Compliant/Exempted
Product Compliance Rohs Exceptions
III-6(c)
