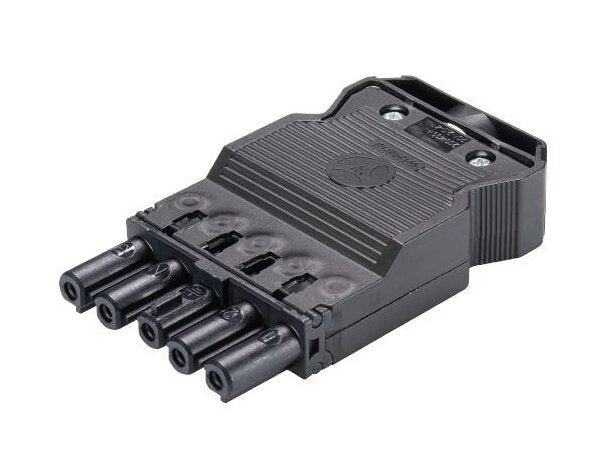

Wieland GST18I5S 5-Pole Pluggable Electrical Connector
Wieland GST18I5S 5-Pole Pluggable Electrical Connector
SKU:ELE-f34a7d
Wieland 5-Pole Indoor Rated Electrical Connector for secure and compliant power connections.
Regular price
$14.99
Regular price
Sale price
$14.99
Unit price
per
Initiate Order
Wieland GST18I5S 5-Pole Pluggable Electrical Connector
$14.99
Quantity: 1
Claim Your Seller Account
Wieland GST18I5S 5-Pole Pluggable Electrical Connector
$14.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland GST18I5S B1 ZR2 SW Pluggable Electrical Connector is a premium 5-pole female connector designed for indoor use. With a maximum rated voltage of 600 V and a rated current of 20 A, this connector ensures reliable power connectivity. It features a self-locking mechanism for added security and mechanical coding for easy identification. The polyamide housing with strain relief in black color provides durability and strain relief. With IP20 protection and compliance with RoHS and REACH regulations, this connector meets essential environmental standards for safe and sustainable use.
Product Specifications
Classification Eclass 81 Classification
27440605
Classification Etim 40 Classification
EC002560
Classification Etim 50 Classification
EC002560
Classification Etim 60 Classification
EC002560
Classification Etim 70 Classification
EC002560
Connection Data Maximum Cable Diameter
15.5 mm
Connection Data Maximum Fine Stranded Connection Cross Section
1 mm²
Connection Data Maximum Solid Connection Cross Section
4 mm² | 4 AWG
Connection Data Minimum Cable Diameter
11.5 mm
Connection Data Minimum Solid Connection Cross Section
0.75 mm² | 0.75 AWG
Dimensions Height
17.5 mm
Dimensions Length
84.4 mm
Dimensions Width
47.8 mm
General Brands
Wieland
General Color Of Codingcontact Carrier
Black
General Color Of Housing Inclusive Strain Relief
Black
General Lockable
Self-Locking (Unlocking by Tool)
General Marking Of Poles
1 | 2 | 3 | N | PE
General Maximum Rated Voltage
600 V
General Mechanical Coding
Code 1
General Model
GST18I5S B1 ZR2 SW
General Number Of Poles
5
General Pollution Degree
2
General Rated Current
20 A
General Rated Impulse Voltage
4 kV
General Strain Relief
Yes
Material Contact Material
Copper Zinc (CuZn)
Material Fire Load
0.179 kW·h
Material Halogen Free
Yes
Material Housing Material
Polyamide
Material Surface Finish
Silver-Plated
Model Connection Type
Female
Model Degree Of Protection Ip
IP20
Note Remark To Type Of Connection
Fine stranded wires 4 mm² only without ferrules
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
Product Compliance Rohs Conformity Status
Compliant with Exceptions
Product Compliance Rohs Exceptions
III-6(c)
