Wieland GST18I5S B1 SW Splitter - 5 Pole Female Connector, 20A, Indoor Rated
Wieland GST18I5S B1 SW Splitter - 5 Pole Female Connector, 20A, Indoor Rated
SKU:ELE-eada4b
Reliable Wieland GST18I5S B1 SW Splitter - Ideal for Institutional Use, 5-Pole Female Connector, 20A, Indoor Rated
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Wieland GST18I5S B1 SW Splitter - 5 Pole Female Connector, 20A, Indoor Rated
$29.99
Quantity: 1
Claim Your Seller Account
Wieland GST18I5S B1 SW Splitter - 5 Pole Female Connector, 20A, Indoor Rated
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland GST18I5S B1 SW Splitter is a reliable indoor-rated electrical connector designed for institutional use. Featuring a 5-pole female connector with a self-locking mechanism, this splitter ensures secure connections with a maximum rated voltage of 600V. With a halogen-free polyamide housing and copper zinc contacts, it meets RoHS conformity standards and REACH-SVHC regulations. The IP20 protection and screw connection make it suitable for various applications, including government procurement projects.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Classification Eclass 81 Classification
27440602
Classification Etim 40 Classification
EC002566
Classification Etim 50 Classification
EC002566
Classification Etim 60 Classification
EC002566
Classification Etim 70 Classification
EC002566
Connection Data Maximum Fine Stranded Connection Cross Section
4 mm²
Connection Data Maximum Solid Connection Cross Section
4 mm²
Connection Data Minimum Fine Stranded Connection Cross Section
0.75 mm²
Connection Data Minimum Solid Connection Cross Section
0.75 mm²
Connection Data Terminations Per Pole
1
Connection Data Wire Strip Length
7 mm

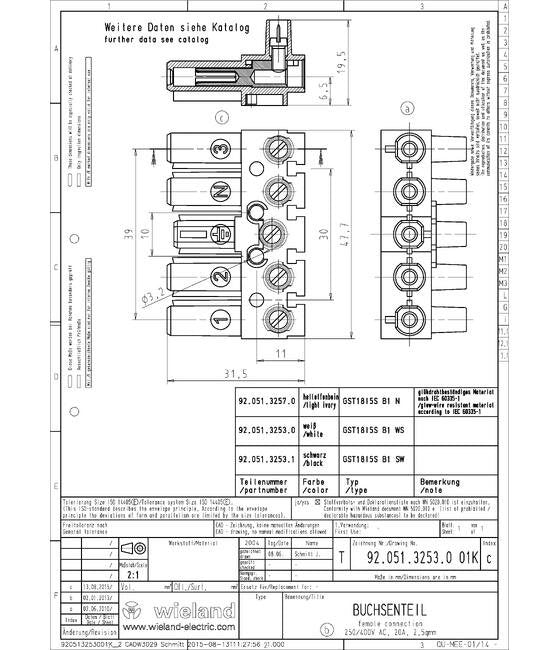

Dimensions Height
19.5 mm
Dimensions Length
31.5 mm
Dimensions Width
47.7 mm
General Brands
Wieland
General Color Of Codingcontact Carrier
Black
General Connector Type
Female
General Lockable
Self-Locking (Unlocking by Hand)
General Marking Of Poles
1 | 2 | 3 | N | PE
General Maximum Rated Voltage
600 V
General Mechanical Coding
Code 1
General Model
GST18I5S B1 SW
General Number Of Poles
5
General Rated Current
20 A
Material Contact Material
Copper Zinc (CuZn)
Material Fire Load
0.059 kW·h
Material Halogen Free
Yes
Material Housing Material
Polyamide
Material Insulation Components Continuous Temperature
100 ºC
Material Surface Finish
Tin-Plated
Model Angle Of Plug
Straight
Model Built In Component
Built-in Component/connector
Model Connection Type
Screw Connection
Model Degree Of Protection
IP20
Model Remark To Type Of Connection
Fine stranded wires 4 mm² only without ferrules
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
Product Compliance Rohs Conformity Status
Compliant with Exceptions
Product Compliance Rohs Exceptions
III-6(c)
