Wieland GST18I5S S1 ZR1 SW 5-Pole Male Connector
Wieland GST18I5S S1 ZR1 SW 5-Pole Male Connector
SKU:ELE-ede183
Reliable 5-pole male indoor electrical connector with black strain relief. Compliant with RoHS and IP20 standards.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Wieland GST18I5S S1 ZR1 SW 5-Pole Male Connector
$24.99
Quantity: 1
Claim Your Seller Account
Wieland GST18I5S S1 ZR1 SW 5-Pole Male Connector
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

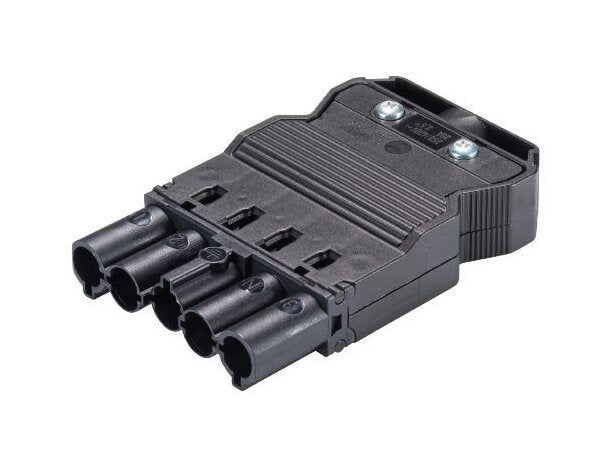

The Wieland GST18I5S S1 ZR1 SW Male Connector is a high-quality 5-pole electrical connector designed for indoor use, featuring a reliable screw connection. With a maximum rated voltage of 600V and a rated current of 20A, this connector offers secure connections for various applications. The connector is constructed with durable polyamide housing, ensuring longevity and safety. Its black color housing and strain relief make it suitable for professional settings. Compliant with RoHS standards and offering IP20 protection, this connector meets essential industry requirements.
Product Specifications
Classification Eclass 81 Classification
27440605
Classification Etim 40 Classification
EC002560
Classification Etim 50 Classification
EC002560
Classification Etim 60 Classification
EC002560
Classification Etim 70 Classification
EC002560
Connection Data Maximum Cable Diameter
13.5 mm
Connection Data Maximum Fine Stranded Connection Cross Section
2.5 mm²
Connection Data Maximum Solid Connection Cross Section
2.5 mm²
Connection Data Minimum Cable Diameter
7 mm
Connection Data Minimum Fine Stranded Connection Cross Section
0.75 mm²
Connection Data Minimum Solid Connection Cross Section
0.75 mm²
Connection Data Sheath Strip Length
42 mm
Connection Data Terminations Per Pole
1
Connection Data Wire Strip Length
7 mm

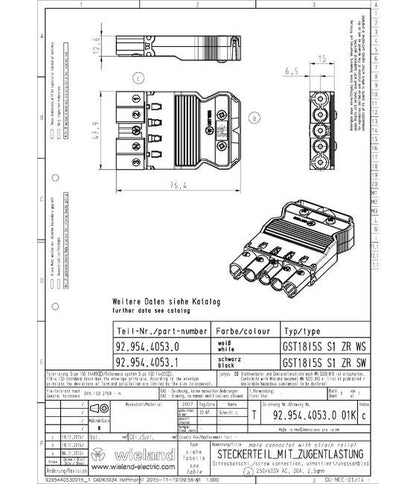

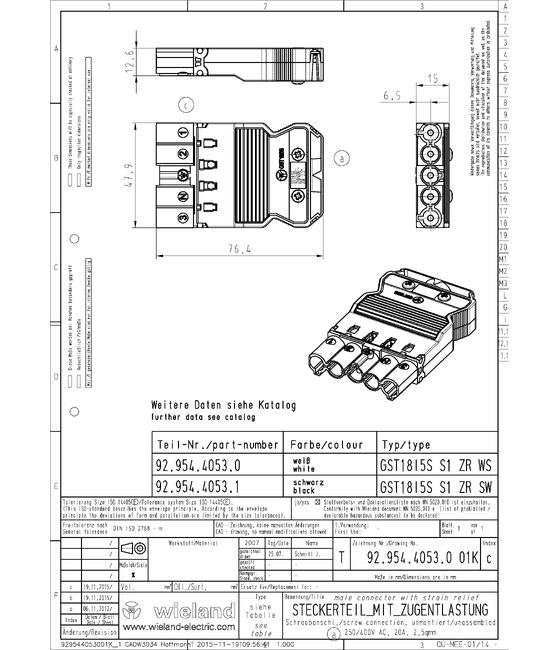

Dimensions Height
15 mm
Dimensions Length
76.4 mm
Dimensions Width
47.75 mm
General Brands
Wieland
General Color Of Codingcontact Carrier
Black
General Color Of Housing Inclusive Strain Relief
Black
General Lockable
Self-Locking (Unlocking by Tool)
General Marking Of Poles
1 | 2 | 3 | N | PE
General Maximum Rated Voltage
600 V
General Mechanical Coding
Code 1
General Model
CONNECTOR GST18I5S S1 ZR1 SW
General Number Of Poles
5
General Pollution Degree
2
General Rated Current
20 A
General Rated Impulse Voltage
4 kV
General Strain Relief
Yes
Material Contact Material
Copper Zinc (CuZn)
Material Fire Load
0.157 kW·h
Material Halogen Free
Yes
Material Housing Material
Polyamide
Material Surface Finish
Silver-Plated
Model Connection Type
Male
Model Degree Of Protection Ip
IP20
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
