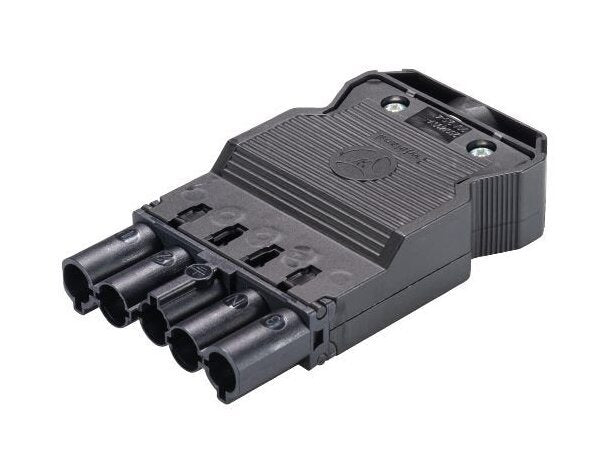

Wieland GST18I5S S1 ZR2 SW 5-Pole Male Connector
Wieland GST18I5S S1 ZR2 SW 5-Pole Male Connector
SKU:ELE-7ba473
High-quality 5-pole male connector with 600V maximum rated voltage, self-locking mechanism, and RoHS compliance.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Wieland GST18I5S S1 ZR2 SW 5-Pole Male Connector
$24.99
Quantity: 1
Claim Your Seller Account
Wieland GST18I5S S1 ZR2 SW 5-Pole Male Connector
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland GST18I5S S1 ZR2 SW Male Connector is a high-quality electrical connector designed for indoor use. With 5 poles and a maximum rated voltage of 600V, it offers reliable performance. Featuring a self-locking mechanism and black color coding, this connector ensures secure connections and easy identification. The polyamide housing and halogen-free construction make it environmentally friendly. With compliance to RoHS standards, this connector is a safe and efficient choice for both consumer and institutional applications.
Product Specifications
Classification Eclass 81 Classification
27440605
Classification Etim 40 Classification
EC002560
Classification Etim 50 Classification
EC002560
Classification Etim 60 Classification
EC002560
Classification Etim 70 Classification
EC002560
Connection Data Maximum Cable Diameter
15.5 mm
Connection Data Maximum Fine Stranded Connection Cross Section
4 mm²
Connection Data Maximum Solid Connection Cross Section
4 mm²
Connection Data Minimum Cable Diameter
11.5 mm
Connection Data Minimum Fine Stranded Connection Cross Section
0.75 mm²
Connection Data Minimum Solid Connection Cross Section
0.75 mm²
Connection Data Terminations Per Pole
1
Dimensions Height
17.5 mm
Dimensions Length
84.4 mm
Dimensions Width
47.8 mm
General Brands
Wieland
General Color Of Codingcontact Carrier
Black
General Color Of Housing Inclusive Strain Relief
Black
General Lockable
Self-Locking (Unlocking by Tool)
General Marking Of Poles
1 | 2 | 3 | N | PE
General Maximum Rated Voltage
600 V
General Mechanical Coding
Code 1
General Model
CONNECTOR GST18I5S S1 ZR2 SW
General Number Of Poles
5
General Pollution Degree
2
General Rated Current
20 A
General Rated Impulse Voltage
4 kV
General Strain Relief
Yes
Material Contact Material
Copper Zinc (CuZn)
Material Fire Load
0.18 kW·h
Material Halogen Free
Yes
Material Housing Material
Polyamide
Material Surface Finish
Silver-Plated
Model Connection Type
Male
Model Degree Of Protection Ip
IP20
Note Remark To Type Of Connection
Fine stranded wires 4 mm² only without ferrules
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
Product Compliance Rohs Conformity Status
Compliant with Exceptions
