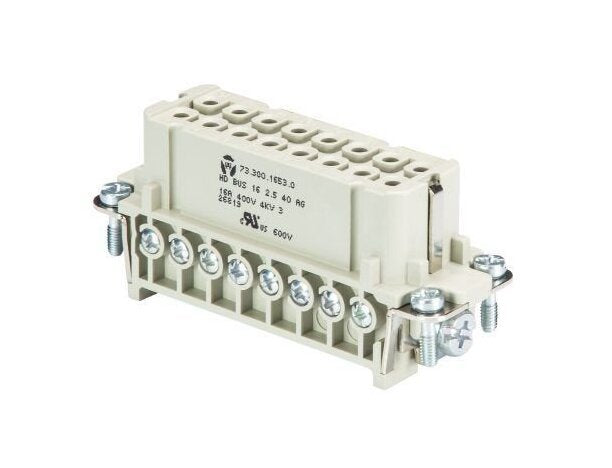

Wieland HD BUS 16 2.5 25 AG Female Industrial Connector Insert
Wieland HD BUS 16 2.5 25 AG Female Industrial Connector Insert
SKU:IND-ff7557
Reliable Wieland industrial connector insert with 16A, 250V rating, gray V0 housing, and RoHS compliance.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Wieland HD BUS 16 2.5 25 AG Female Industrial Connector Insert
$34.99
Quantity: 1
Claim Your Seller Account
Wieland HD BUS 16 2.5 25 AG Female Industrial Connector Insert
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland HD BUS 16 2.5 25 AG Female Industrial Connector Insert is a premium solution designed for industrial applications. With a rating of 16A and 250V, this connector insert ensures reliable power connections. It features a gray housing with a V0 inflammability class, suitable for harsh environments. The screw connection type and copper alloy contacts with silver-plating guarantee secure and low-resistance connections. This insert is RoHS and REACH-SVHC compliant, maintaining high environmental standards.
Product Specifications
Classification Eclass 81 Classification
27440205
Classification Etim 30 Classification
EC000438
Classification Etim 40 Classification
EC000438
Classification Etim 50 Classification
EC000438
Classification Etim 60 Classification
EC000438
Classification Etim 70 Classification
EC000438
Connection Data Connection Type
Screw Connection
Connection Data Maximum Conductor Diameter Rigid Solidstranded
1.5 mm²
Connection Data Minimum Conductor Diameter Rigid Solidstranded
0.5 mm²
Connection Data Number Of Poles
16
Connection Data Protective Contact
Yes
Connection Data Total Number Of Poles Without Ground Contact
16
Connection Data With Wire Protection
Yes
Contacts Contact Material
Copper Alloy
Contacts Contact Resistance
⤠4 mΩ
Contacts Surface
Silver-Plated
Contacts Wire Strip Length
7 mm
General Alternative Size
32/50
General Brands
Wieland
General Color
Gray
General Inflammability Class Of Insulation Material According Wi
V0
General Mating Cycles
100
General Maximum Operating Temperature
120 ºC
General Minimum Operating Temperature
-40 ºC
General Model
FEMALE INSERT HD BUS 16 2,5 25 AG
General Modular Version
No
General Pollution Degree
3
General Type
Female Insert
Model With Housing
No
Product Compliance Reach Svhc Conformity Status
Compliant
Product Compliance Rohs Conformity Status
Compliant
Screws Head Design Clamping Screws
H1/0.5-0.7 N·m
Screws Head Design Ground Conductor Screws
Z2/1.2 N·m
Screws Head Design Mounting Screws
Z1/0.5 N·m
Technical Data Din En 61984 Maximum Rated Voltage Faceground
250 V
Technical Data Din En 61984 Nominal Current
16 A
Technical Data Din En 61984 Nominal Voltage
250 V
Technical Data Din En 61984 Rated Impulse Voltage
4 kV
Technical Data Ulcsa Flexible Wire Conductor Cross Section
20-14 AWG
Technical Data Ulcsa Maximum Rated Voltage According To Underwri
600 V
