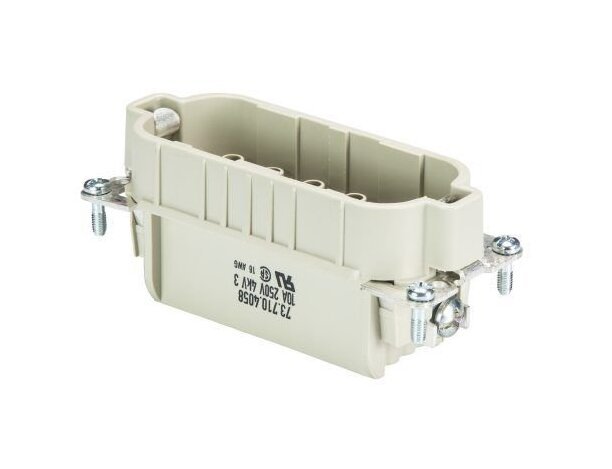

Wieland HD STC 40 25 High Density Multi-Pole Connector Insert
Wieland HD STC 40 25 High Density Multi-Pole Connector Insert
SKU:IND-5c31b1
Reliable Wieland HD STC 40 25 Connector Insert for industrial applications. Crimp connection, 250V/10A, V0 inflammability class, -40°C to 120°C operating range.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Wieland HD STC 40 25 High Density Multi-Pole Connector Insert
$29.99
Quantity: 1
Claim Your Seller Account
Wieland HD STC 40 25 High Density Multi-Pole Connector Insert
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland HD STC 40 25 High Density Multi-Pole Connector Insert is designed for industrial applications requiring a reliable and high-performance connection solution. With 40 poles + ground and a male insert, it features a crimp connection for secure installations. This connector insert is rated for 250V/10A, with a V0 inflammability class of insulation material according to UL94 standards. It offers a wide operating temperature range from -40°C to 120°C, making it suitable for varied environments. The connector insert meets stringent industry standards for voltage, current, wire protection, and contact resistance, ensuring optimal performance and durability.
Product Specifications
Classification Eclass 81 Classification
27440205
Classification Etim 30 Classification
EC000438
Classification Etim 40 Classification
EC000438
Classification Etim 50 Classification
EC000438
Classification Etim 60 Classification
EC000438
Classification Etim 70 Classification
EC000438
Connection Data Connection Type
Crimp
Connection Data Number Of Poles
40
Connection Data Protective Contact
Yes
Connection Data Total Number Of Poles Without Ground Contact
40
Connection Data With Wire Protection
No
Contacts Contact Resistance
â¤Â 4 mΩ
Contacts Wire Strip Length
4 mm
General Brands
Wieland
General Color
Gray
General Inflammability Class Of Insulation Material According Wi
V0
General Mating Cycles
50
General Maximum Operating Temperature Range
120 ºC
General Minimum Operating Temperature Range
-40 ºC
General Model
Male Pin insert - HD STC 40 25
General Modular Version
No
General Pollution Degree
3
Model With Housing
No
Screws Head Design Ground Conductor Screws
M3.5/0.8-1.0 N·m
Screws Head Design Mounting Screws
H1/0.5-0.7 N·m
Technical Data Din En 61984 Maximum Rated Voltage Faceground
250 V
Technical Data Din En 61984 Nominal Current
10 A
Technical Data Din En 61984 Nominal Voltage
250 V
Technical Data Flexible Wire Conductor Cross Section
24-16 AWG
Technical Data Maximum Flexible Wire Conductor Cross Section
1.5 mm²
Technical Data Maximum Rated Voltage According To Underwriters L
600 V
Technical Data Minimum Flexible Wire Conductor Cross Section
0.2 mm²
Technical Data Rated Current According Canadian Standards Associ
10 A
