Wieland HD STC 64 25 Industrial Connector Insert
Wieland HD STC 64 25 Industrial Connector Insert
SKU:IND-7d7c73
Reliable Wieland 64-Pole Industrial Connector Insert with 10A rated current, V0 inflammability class, and UL/CSA compliance.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Wieland HD STC 64 25 Industrial Connector Insert
$49.99
Quantity: 1
Claim Your Seller Account
Wieland HD STC 64 25 Industrial Connector Insert
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

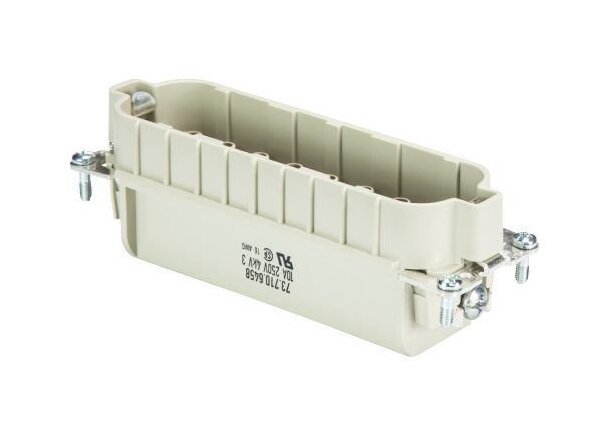

The Wieland HD STC 64 25 Industrial Connector Insert is a robust male insert designed for demanding industrial applications. With 64 poles + ground, this connector ensures secure and reliable connections with a rated current of 10A and a maximum rated voltage of 600V. It features a V0 inflammability class, a temperature range from -40°C to 120°C, and crimp connections for easy installation. The connector is designed for 50 mating cycles, offering durable performance. Compliant with UL and CSA standards, this gray connector meets stringent industrial requirements for safety and performance.
Product Specifications
Classification Eclass 81 Classification
27440205
Classification Etim 30 Classification
EC000438
Classification Etim 40 Classification
EC000438
Classification Etim 50 Classification
EC000438
Classification Etim 60 Classification
EC000438
Classification Etim 70 Classification
EC000438
Connection Data Connection Type
Crimp
Connection Data Number Of Poles
64
Connection Data Protective Contact
Yes
Connection Data Total Number Of Poles Without Ground Contact
64
Connection Data With Wire Protection
No
Contacts Contact Material
See contacts
Contacts Contact Resistance
⤠4 mΩ
Contacts Surface
See contacts
Contacts Wire Strip Length
4 mm
General Brands
Wieland
General Color
Gray
General Inflammability Class Of Insulation Material According Wi
V0
General Mating Cycles
50
General Maximum Operating Temperature
120 ºC
General Minimum Operating Temperature
-40 ºC
General Model
MALE INSERT HD STC 64 25
General Modular Version
No
General Pollution Degree
3
General Type
Male Insert
Model With Housing
No
Screws Head Design Clamping Screws
M3.5/0.8-1.0 Slot N·m
Screws Head Design Mounting Screws
H1/0.5-0.7 N·m
Technical Data Din En 61984 Maximum Rated Voltage Faceground
250 V
Technical Data Din En 61984 Nominal Current
10 A
Technical Data Din En 61984 Nominal Voltage
250 V
Technical Data Din En 61984 Rated Impulse Voltage
4 kV
Technical Data Ulcsa Flexible Wire Conductor Cross Section
24-16 AWG
Technical Data Ulcsa Maximum Flexible Wire Conductor Cross Secti
1.5 mm²
Technical Data Ulcsa Maximum Rated Voltage According To Underwri
600 V
Technical Data Ulcsa Minimum Flexible Wire Conductor Cross Secti
0.2 mm²
Technical Data Ulcsa Rated Current According Canadian Standards
10 A
