Wieland Heavy-Duty Multi-Pole Industrial Connector Housing
Wieland Heavy-Duty Multi-Pole Industrial Connector Housing
SKU:IND-cfac68
Durable Wieland 10-pole Industrial Connector Housing for reliable outdoor use. IP54-rated, UV resistant, and RoHS compliant.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Wieland Heavy-Duty Multi-Pole Industrial Connector Housing
$59.99
Quantity: 1
Claim Your Seller Account
Wieland Heavy-Duty Multi-Pole Industrial Connector Housing
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

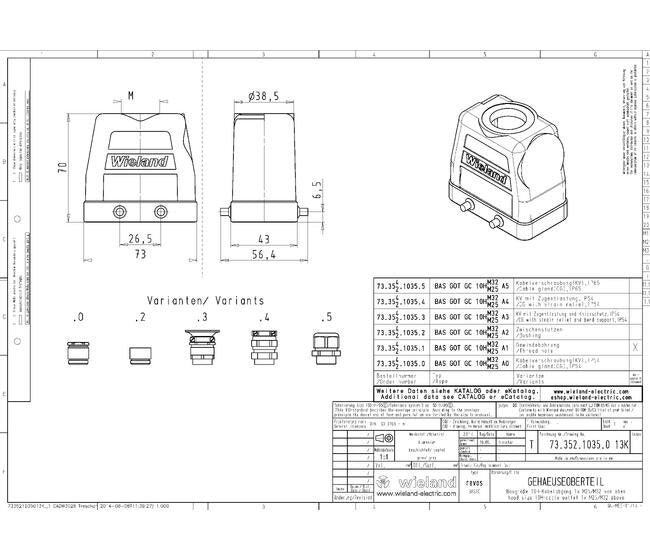

The Wieland Heavy-Duty Multi-Pole Industrial Connector Housing is a rugged solution designed for industrial applications. Constructed with durable aluminum and featuring a powder coating for added protection, this housing ensures reliable performance in harsh environments. With a 10-pole configuration and a secure double locking lever mechanism, it provides a stable and safe connection. The IP54 rating and UV resistance make it suitable for outdoor use, while the wide operating temperature range (-40°C to 120°C) enhances its versatility. Measuring 73mm x 56mm x 70mm, this low-profile housing offers space-efficient connectivity. Compliant with RoHS and REACH standards.
Product Specifications
Classification Eclass 81 Classification
27440202
Classification Etim 30 Classification
EC000437
Classification Etim 40 Classification
EC000437
Classification Etim 50 Classification
EC000437
Classification Etim 60 Classification
EC000437
Classification Etim 70 Classification
EC000437
General Brands
Wieland
General Color
Gray
General Degree Of Protection Ip
IP54
General Housing Material
Aluminum
General Inflammability Class Of Insulation Material According Wi
Other
General Maximum Operating Temperature Range
120 ºC
General Minimum Operating Temperature Range
-40 ºC
General Model
HOOD BAS GOT GC 10HM25 50 A0
General Surface
With Powder Coating
General Ultraviolet Uv Resistant
Yes
Model Cable Entry
Above
Model Construction
10
Model Emc Version
No
Model Height
70 mm
Model Hinged Lid
No
Model Length
73 mm
Model Locking Mechanism
Double Locking Levers
Model Thread Size M
25
Model Type
Male
Model Type Of Cable
Gland nut
Model Width
56 mm
Model With Cable Screw Gland
Yes
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
Product Compliance Rohs Conformity Status
Compliant with Exceptions
Product Compliance Rohs Exceptions
III-6(c)
Specifications Number Of Poles
10
Specifications Profile
Low
