Wieland Hood BAS GOT GC 24 M32 A1 Heavy-Duty Industrial Connector Housing
Wieland Hood BAS GOT GC 24 M32 A1 Heavy-Duty Industrial Connector Housing
SKU:IND-0fdfc4
Premium Wieland Industrial Connector Housing with 24 poles, aluminum construction, double locking levers, and wide temperature range. REACH-SVHC compliant.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Wieland Hood BAS GOT GC 24 M32 A1 Heavy-Duty Industrial Connector Housing
$89.99
Quantity: 1
Claim Your Seller Account
Wieland Hood BAS GOT GC 24 M32 A1 Heavy-Duty Industrial Connector Housing
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

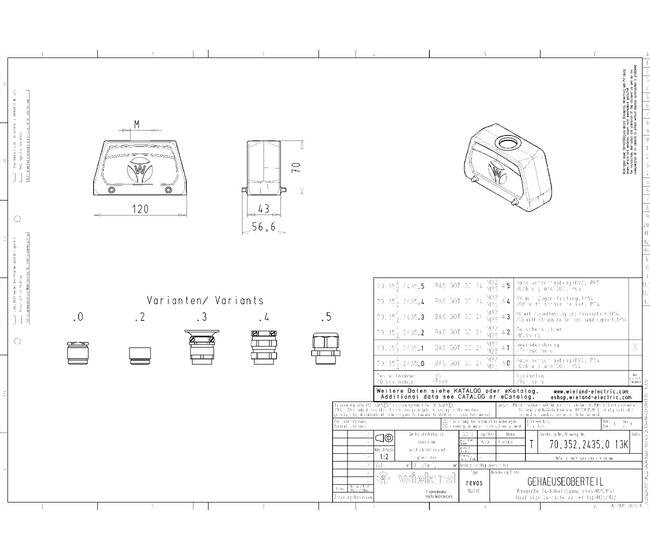

The Wieland Hood BAS GOT GC 24 M32 A1 Multi-Pole Heavy-Duty Industrial Connector Housing is a premium solution designed for industrial applications requiring a robust connection system. Constructed from durable aluminum with a gray powder coating, this housing accommodates 24 poles with a low profile design. Featuring double locking levers for secure connections, it offers UV resistance and operates within a wide temperature range from -40°C to 120°C. Compliant with REACH-SVHC standards, this housing ensures reliability and safety in demanding environments.
Product Specifications
Classification Eclass 81 Classification
27440202
Classification Etim 30 Classification
EC000437
Classification Etim 40 Classification
EC000437
Classification Etim 50 Classification
EC000437
Classification Etim 60 Classification
EC000437
Classification Etim 70 Classification
EC000437
General Brands
Wieland
General Color
Gray
General Degree Of Protection Ip
Other
General Housing Material
Aluminum
General Inflammability Class Of Insulation Material According Wi
Other
General Maximum Operating Temperature Range
120 ºC
General Minimum Operating Temperature Range
-40 ºC
General Model
HOOD BAS GOT GC 24 M32 A1
General Surface
With Powder Coating
General Ultraviolet Uv Resistant
Yes
Model Cable Entry
Above
Model Construction
24
Model Emc Version
No
Model Height
70 mm
Model Hinged Lid
No
Model Length
120 mm
Model Locking Mechanism
Double Locking Levers
Model Thread Size M
32
Model Type
Male
Model Type Of Cable
Thread
Model Width
57 mm
Model With Cable Screw Gland
No
Product Compliance Reach Svhc Conformity Status
Compliant
Specifications Number Of Poles
24
Specifications Profile
Low
