Wieland HOOD MIN GOT GB 7 M20 25 Z1 Industrial Connector Housing
Wieland HOOD MIN GOT GB 7 M20 25 Z1 Industrial Connector Housing
SKU:IND-098096
Durable Wieland Industrial Connector Housing with M20 threaded hole, UV resistance, and robust construction for industrial applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Wieland HOOD MIN GOT GB 7 M20 25 Z1 Industrial Connector Housing
$49.99
Quantity: 1
Claim Your Seller Account
Wieland HOOD MIN GOT GB 7 M20 25 Z1 Industrial Connector Housing
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

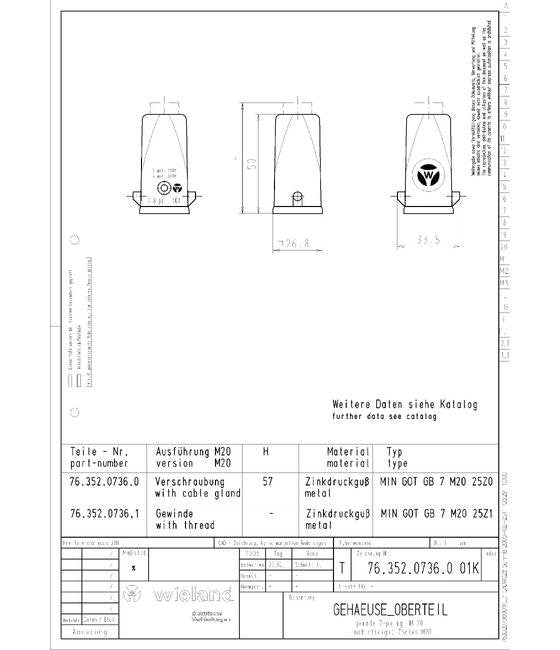

The Wieland HOOD MIN GOT GB 7 M20 25 Z1 Multi-Pole Heavy-Duty Industrial Connector Housing is a robust solution for industrial multipole connections. Constructed from die-cast zinc with a gray powder coating, it ensures durability and protection. Features include a single locking lever mechanism, M20 threaded hole, and UV resistance. With a temperature range from -40°C to 120°C, this housing meets stringent industrial standards for reliability and performance.
Product Specifications
Classification Eclass 81 Classification
27440202
Classification Etim 30 Classification
EC000437
Classification Etim 40 Classification
EC000437
Classification Etim 50 Classification
EC000437
Classification Etim 60 Classification
EC000437
Classification Etim 70 Classification
EC000437
General Brands
Wieland
General Color
Gray
General Degree Of Protection Ip
Other
General Housing Material
Die-cast zinc
General Inflammability Class Of Insulation Material According Wi
Other
General Maximum Operating Temperature Range
120 ºC
General Minimum Operating Temperature Range
-40 ºC
General Model
HOOD MIN GOT GB 7 M20 25 Z1
General Surface
With Powder Coating
General Ultraviolet Uv Resistant
Yes
Model Cable Entry
Above
Model Construction
3
Model Emc Version
No
Model Height
50 mm
Model Hinged Lid
No
Model Length
26.8 mm
Model Locking Mechanism
Single Locking Lever
Model Thread Size M
20
Model Type
Male
Model Type Of Cable
Thread
Model Width
33.5 mm
Model With Cable Screw Gland
No
Specifications Profile
Low
