Wieland Industrial Connector Housing - 10-Pole Aluminum Bottom Base GUT GK 10 A
Wieland Industrial Connector Housing - 10-Pole Aluminum Bottom Base GUT GK 10 A
SKU:IND-b0895a
Durable Wieland 10-Pole Aluminum Industrial Connector Housing. IP54 rated, UV resistant, -40°C to 120°C range. Compliant with REACH-SVHC.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Wieland Industrial Connector Housing - 10-Pole Aluminum Bottom Base GUT GK 10 A
$59.99
Quantity: 1
Claim Your Seller Account
Wieland Industrial Connector Housing - 10-Pole Aluminum Bottom Base GUT GK 10 A
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

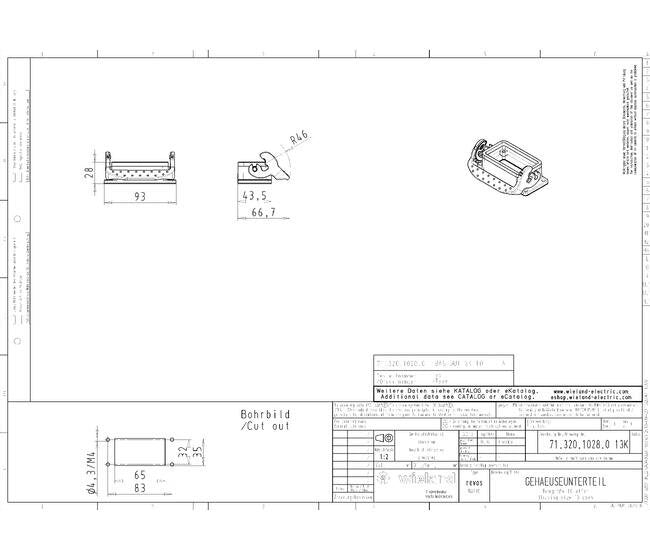

The Wieland BOTTOM BAS GUT GK 10 A Multi-Pole Heavy-Duty Industrial Connector Housing is a premium solution designed for industrial applications. Constructed from durable aluminum with a gray powder coating, this housing features a single locking lever for secure connections. With an IP54 rating, UV resistance, and a temperature range from -40°C to 120°C, it ensures reliable performance in varying environments. Measuring 93mm in length, 43.5mm in width, and 28mm in height, this 10-pole connector housing is ideal for equipment-mounted installations. Compliant with REACH-SVHC regulations, it meets stringent quality and safety standards.
Product Specifications
Classification Eclass 81 Classification
27440202
Classification Etim 30 Classification
EC000437
Classification Etim 40 Classification
EC000437
Classification Etim 50 Classification
EC000437
Classification Etim 60 Classification
EC000437
Classification Etim 70 Classification
EC000437
General Brands
Wieland
General Color
Gray
General Degree Of Protection Ip
IP54
General Housing Material
Aluminum
General Inflammability Class Of Insulation Material According Wi
Other
General Maximum Operating Temperature Range
120 ºC
General Minimum Operating Temperature Range
-40 ºC
General Model
BOTTOM BAS GUT GK 10 A
General Surface
With Powder Coating
General Ultraviolet Uv Resistant
Yes
Model Cable Entry
None
Model Construction
10
Model Emc Version
No
Model Height
28 mm
Model Hinged Lid
No
Model Length
93 mm
Model Locking Mechanism
Single Locking Lever
Model Type
Equipment Mounted (Feed-Through)
Model Type Of Cable
None
Model Width
43.5 mm
Model With Cable Screw Gland
No
Product Compliance Reach Svhc Conformity Status
Compliant
Specifications Number Of Poles
10
Specifications Profile
Low
