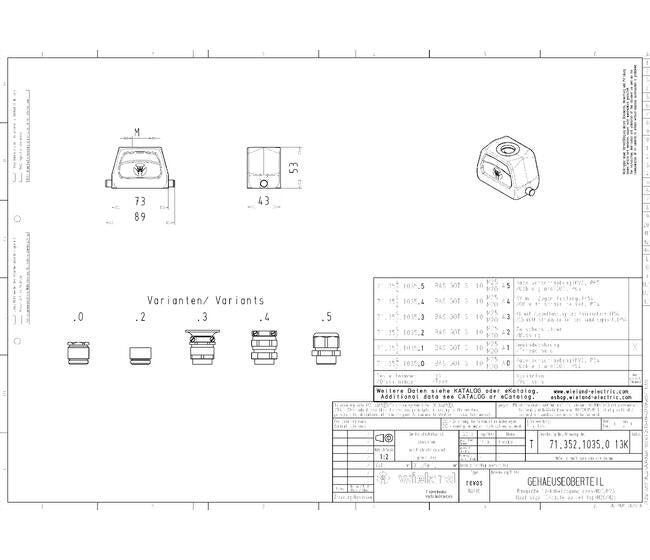

The Wieland HOOD BAS GOT GI 10 M20 A3 Industrial Connector Housing is a heavy-duty solution for industrial applications. Constructed with durable aluminum and a gray powder coating, this housing offers IP54 protection, UV resistance, and a wide temperature range from -40 to 120 ºC. Featuring a single locking lever with a trumpet gland M20 on the top, this 10-pole connector meets RoHS standards and is compliant with exceptions. With a compact design measuring 89mm x 43mm x 53mm, this Wieland connector is ideal for secure and reliable connections in demanding environments.
Product Specifications
Classification Eclass 81 Classification
27440202
Classification Etim 30 Classification
EC000437
Classification Etim 40 Classification
EC000437
Classification Etim 50 Classification
EC000437
Classification Etim 60 Classification
EC000437
Classification Etim 70 Classification
EC000437
General Brands
Wieland
General Color
Gray
General Degree Of Protection Ip
IP54
General Housing Material
Aluminum
General Inflammability Class Of Insulation Material According Wi
Other
General Maximum Operating Temperature Range
120 ºC
General Minimum Operating Temperature Range
-40 ºC
General Model
HOOD BAS GOT GI 10 M20 A3
General Surface
With Powder Coating
General Ultraviolet Uv Resistant
Yes
Model Cable Entry
Above
Model Construction
10
Model Emc Version
No
Model Height
53 mm
Model Hinged Lid
No
Model Length
89 mm
Model Locking Mechanism
Single Locking Lever
Model Thread Size M
20
Model Type
Male
Model Type Of Cable
Gland nut
Model Width
43 mm
Model With Cable Screw Gland
Yes
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
Product Compliance Rohs Conformity Status
Compliant with Exceptions
Product Compliance Rohs Exceptions
III-6(a); III-6(c)
Specifications Number Of Poles
10
Specifications Profile
Low
