Wieland Industrial Connector Housing - 24 Pole M25 Heavy-Duty Aluminum Hood
Wieland Industrial Connector Housing - 24 Pole M25 Heavy-Duty Aluminum Hood
SKU:IND-c17b17
Wieland 24-Pole M25 Heavy-Duty Aluminum Connector Housing - IP54 Rated, UV Resistant, RoHS Compliant
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
Wieland Industrial Connector Housing - 24 Pole M25 Heavy-Duty Aluminum Hood
$79.99
Quantity: 1
Claim Your Seller Account
Wieland Industrial Connector Housing - 24 Pole M25 Heavy-Duty Aluminum Hood
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

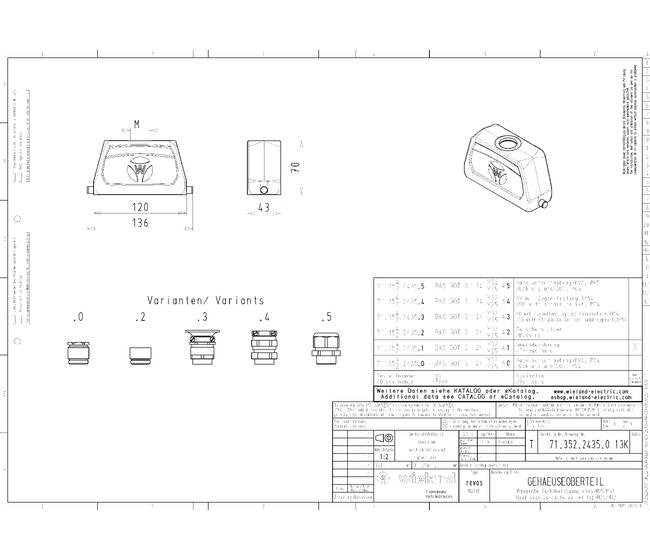

The Wieland HOOD BAS GOT GI 24 M25 A0 Multi-Pole Heavy-Duty Industrial Connector Housing is a robust solution designed for industrial applications. Constructed from durable aluminum with a gray powder coating, this housing features a single locking lever, a cable gland M25 for secure cable entry, and complies with IP54 for protection against dust and water. With a temperature range from -40°C to 120°C, UV resistance, and RoHS compliance, this housing ensures reliable performance in challenging environments. Measuring 136mm in length, 43mm in width, and 70mm in height, this Wieland connector housing is a dependable choice for your industrial connectivity needs.
Product Specifications
Classification Eclass 81 Classification
27440202
Classification Etim 30 Classification
EC000437
Classification Etim 40 Classification
EC000437
Classification Etim 50 Classification
EC000437
Classification Etim 60 Classification
EC000437
Classification Etim 70 Classification
EC000437
General Brands
Wieland
General Color
Gray
General Degree Of Protection Ip
IP54
General Housing Material
Aluminum
General Inflammability Class Of Insulation Material According Wi
Other
General Maximum Operating Temperature Range
120 ºC
General Minimum Operating Temperature Range
-40 ºC
General Model
HOOD BAS GOT GI 24 M25 A0
General Surface
With Powder Coating
General Ultraviolet Uv Resistant
Yes
Model Cable Entry
Above
Model Construction
24
Model Emc Version
No
Model Height
70 mm
Model Hinged Lid
No
Model Length
136 mm
Model Locking Mechanism
Single Locking Lever
Model Thread Size M
25
Model Type
Male
Model Type Of Cable
Gland nut
Model Width
43 mm
Model With Cable Screw Gland
Yes
Product Compliance Reach Svhc Cas Numbers
7439-92
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
Product Compliance Rohs Conformity Status
Compliant with Exceptions
Product Compliance Rohs Exceptions
III-6(a); III-6(c)
Specifications Number Of Poles
24
Specifications Profile
Low
