Wieland Industrial Connector Housing - 24-Pole Multipole Heavy-Duty
Wieland Industrial Connector Housing - 24-Pole Multipole Heavy-Duty
SKU:IND-51cf69
Durable aluminum 24-Pole Industrial Connector Housing, IP66 rated, UV resistant, RoHS compliant
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Wieland Industrial Connector Housing - 24-Pole Multipole Heavy-Duty
$89.99
Quantity: 1
Claim Your Seller Account
Wieland Industrial Connector Housing - 24-Pole Multipole Heavy-Duty
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

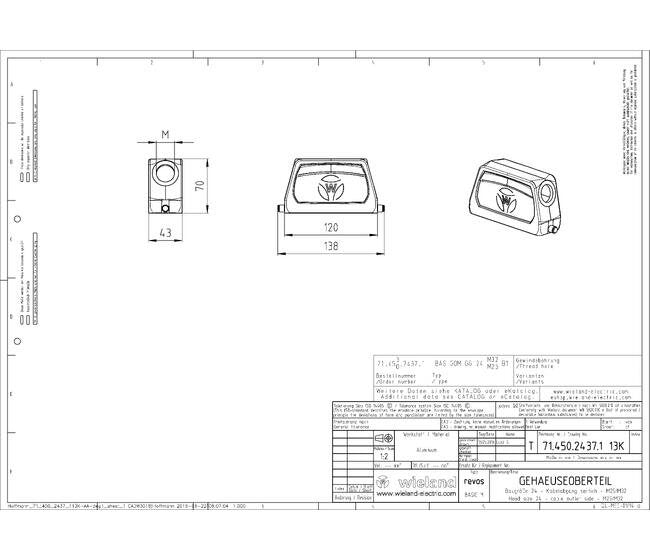

The Wieland HOOD BAS GOM GG24 M25 B1 Multi-Pole Heavy-Duty Industrial Connector Housing is a high-quality solution designed for industrial applications. Constructed from durable aluminum with a gray bare surface, this housing offers a secure fit for 24 poles. Featuring a single locking lever mechanism with a threaded hole M25 on the right side, this low-profile hood ensures reliable performance in challenging environments. With an IP66 degree of protection, UV resistance, and a temperature range from -40 ºC to 120 ºC, it guarantees long-lasting durability and safety. Compliant with RoHS standards and REACH-SVHC regulations, this housing meets various industry-specific certifications for quality assurance.
Product Specifications
Classification Eclass 81 Classification
27440202
Classification Etim 30 Classification
EC000437
Classification Etim 40 Classification
EC000437
Classification Etim 50 Classification
EC000437
Classification Etim 60 Classification
EC000437
Classification Etim 70 Classification
EC000437
General Brands
Wieland
General Color
Gray
General Degree Of Protection Ip
IP66
General Housing Material
Aluminum
General Inflammability Class Of Insulation Material According Wi
Other
General Maximum Operating Temperature Range
120 ºC
General Minimum Operating Temperature Range
-40 ºC
General Model
HOOD BAS GOM GG24 M25 B1
General Surface
Bare
General Ultraviolet Uv Resistant
Yes
Model Cable Entry
Thread
Model Construction
24
Model Emc Version
No
Model Height
70 mm
Model Hinged Lid
No
Model Length
138 mm
Model Locking Mechanism
Sideways
Model Type
Single Locking Lever
Model Type Of Cable
No
Model Width
43 mm
Model With Cable Screw Gland
25
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
Product Compliance Rohs Conformity Status
Compliant with Exceptions
Product Compliance Rohs Exceptions
III-6(a)
Specifications Number Of Poles
24
Specifications Profile
Low
