Wieland Industrial Connector Housing 32-Pole Bottom Base GK 48 50 A
Wieland Industrial Connector Housing 32-Pole Bottom Base GK 48 50 A
SKU:IND-16d430
Durable Wieland Industrial Connector Housing with 32 poles, aluminum construction, single locking lever, IP54 protection, and wide temperature range.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
Wieland Industrial Connector Housing 32-Pole Bottom Base GK 48 50 A
$69.99
Quantity: 1
Claim Your Seller Account
Wieland Industrial Connector Housing 32-Pole Bottom Base GK 48 50 A
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

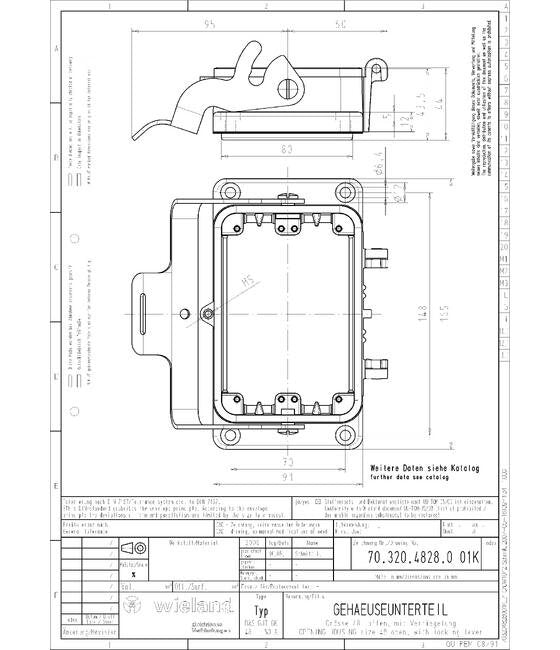

The Wieland Industrial Connector Housing is a heavy-duty solution designed for industrial applications. Constructed with durable aluminum and a single locking lever, this multi-pole housing ensures secure connections. With a low-profile design and IP54 rating, it offers protection in challenging environments. Operating between -40°C to 120°C, this housing is resilient and UV-resistant. Measuring 165mm x 90mm x 44mm, it provides ample space for 32 poles, meeting the needs of industrial setups.
Product Specifications
Classification Eclass 81 Classification
27440202
Classification Etim 40 Classification
EC000437
Classification Etim 50 Classification
EC000437
Classification Etim 60 Classification
EC000437
Classification Etim 70 Classification
EC000437
General Brands
Wieland
General Color
Gray
General Degree Of Protection Ip
IP54
General Housing Material
Aluminum
General Inflammability Class Of Insulation Material According Wi
Other
General Maximum Operating Temperature Range
120 ºC
General Minimum Operating Temperature Range
-40 ºC
General Model
BOTTOM BAS GUT GK 48 50 A
General Surface
With Powder Coating
General Ultraviolet Uv Resistant
Yes
Model Cable Entry
None
Model Construction
48
Model Emc Version
No
Model Height
44 mm
Model Hinged Lid
No
Model Length
165 mm
Model Locking Mechanism
Single Locking Lever
Model Type
Equipment Mounted (Feed-Through)
Model Type Of Cable
None
Model Width
90 mm
Model With Cable Screw Gland
No
Specifications Number Of Poles
32
Specifications Profile
Low
