Wieland Industrial Connector Housing - 40-Pole Heavy-Duty Multipole
Wieland Industrial Connector Housing - 40-Pole Heavy-Duty Multipole
SKU:IND-4d561d
Enhance industrial connectivity with Wieland's 40-Pole Heavy-Duty Connector Housing for secure and reliable multipole connections.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
Wieland Industrial Connector Housing - 40-Pole Heavy-Duty Multipole
$79.99
Quantity: 1
Claim Your Seller Account
Wieland Industrial Connector Housing - 40-Pole Heavy-Duty Multipole
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

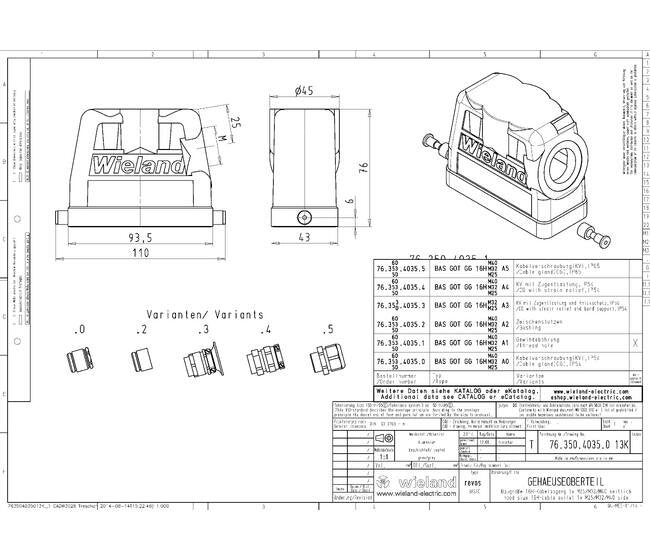

Upgrade your industrial connectivity with the Wieland HOOD BAS GOT GG 40HM25 50 A0 Multi-Pole Heavy-Duty Industrial Connector Housing. Made of durable aluminum with IP54 protection, this connector features a single locking lever design with a cable gland M25 for secure connections. With a low profile and UV resistance, it ensures reliable performance in temperatures ranging from -40°C to 120°C. Measuring 94mm x 43mm x 76mm, this housing is designed for 40 poles, making it ideal for industrial environments requiring robust and dependable connections.
Product Specifications
Classification Eclass 81 Classification
27440202
Classification Etim 30 Classification
EC000437
Classification Etim 40 Classification
EC000437
Classification Etim 50 Classification
EC000437
Classification Etim 60 Classification
EC000437
Classification Etim 70 Classification
EC000437
General Brands
Wieland
General Color
Gray
General Degree Of Protection Ip
IP54
General Housing Material
Aluminum
General Inflammability Class Of Insulation Material According Wi
Other
General Maximum Operating Temperature Range
120 ºC
General Minimum Operating Temperature Range
-40 ºC
General Model
HOOD BAS GOT GG 40HM25 50 A0
General Surface
With Powder Coating
General Ultraviolet Uv Resistant
Yes
Model Cable Entry
Sideways
Model Construction
16H
Model Emc Version
No
Model Height
76 mm
Model Hinged Lid
No
Model Length
94 mm
Model Locking Mechanism
Single Locking Lever
Model Thread Size M
25
Model Type
Male
Model Type Of Cable
Gland nut
Model Width
43 mm
Model With Cable Screw Gland
Yes
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
Product Compliance Rohs Conformity Status
Compliant with Exceptions
Product Compliance Rohs Exceptions
III-6(a); III-6(c)
Specifications Number Of Poles
40
Specifications Profile
Low
