Wieland Industrial Connector Housing - 6-Pole Bottom Base
Wieland Industrial Connector Housing - 6-Pole Bottom Base
SKU:IND-c88b53
Durable Wieland 6-Pole Industrial Connector Housing with IP65 protection, single locking lever, and RoHS compliance.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Wieland Industrial Connector Housing - 6-Pole Bottom Base
$59.99
Quantity: 1
Claim Your Seller Account
Wieland Industrial Connector Housing - 6-Pole Bottom Base
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

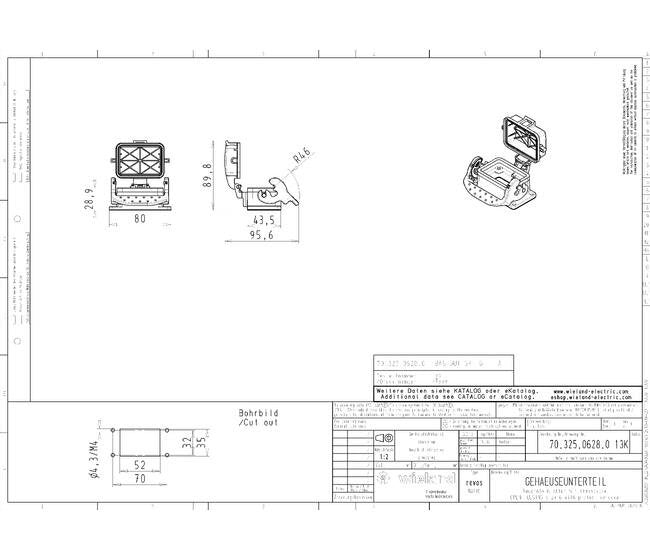

The Wieland BOTTOM BAS GUT GP 6 A Multi-Pole Heavy-Duty Industrial Connector Housing is a premium solution designed for industrial applications. Constructed from durable aluminum with a gray powder coating, this housing offers IP65 protection and UV resistance. Featuring a single locking lever, hinged lid, and a low-profile design, it ensures secure connections and easy access. With compliance to RoHS standards and a temperature range from -40°C to 120°C, this housing meets the highest quality and safety requirements for industrial settings.
Product Specifications
Classification Eclass 81 Classification
27440202
Classification Etim 30 Classification
EC000437
Classification Etim 40 Classification
EC000437
Classification Etim 50 Classification
EC000437
Classification Etim 60 Classification
EC000437
Classification Etim 70 Classification
EC000437
General Brands
Wieland
General Color
Gray
General Degree Of Protection Ip
IP65
General Housing Material
Aluminum
General Inflammability Class Of Insulation Material According Wi
Other
General Maximum Operating Temperature Range
120 ºC
General Minimum Operating Temperature Range
-40 ºC
General Model
BOTTOM BAS GUT GP 6 A
General Surface
With Powder Coating
General Ultraviolet Uv Resistant
Yes
Model Cable Entry
None
Model Construction
6
Model Emc Version
No
Model Height
28.9 mm
Model Hinged Lid
Yes
Model Length
80 mm
Model Locking Mechanism
Single Locking Lever
Model Type
Equipment Mounted (Feed-Through)
Model Type Of Cable
None
Model Width
43.5 mm
Model With Cable Screw Gland
No
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
Product Compliance Rohs Conformity Status
Compliant with Exceptions
Product Compliance Rohs Exceptions
III-6(a)
Specifications Number Of Poles
6
Specifications Profile
Low
