Wieland Industrial Connector Housing - 6-Pole Multi-Pole Heavy-Duty
Wieland Industrial Connector Housing - 6-Pole Multi-Pole Heavy-Duty
SKU:IND-b40ea6
Wieland 6-Pole Heavy-Duty Connector Housing with IP54 Protection, Aluminum Construction, Cable Gland M25, and RoHS Compliance.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
Wieland Industrial Connector Housing - 6-Pole Multi-Pole Heavy-Duty
$79.99
Quantity: 1
Claim Your Seller Account
Wieland Industrial Connector Housing - 6-Pole Multi-Pole Heavy-Duty
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

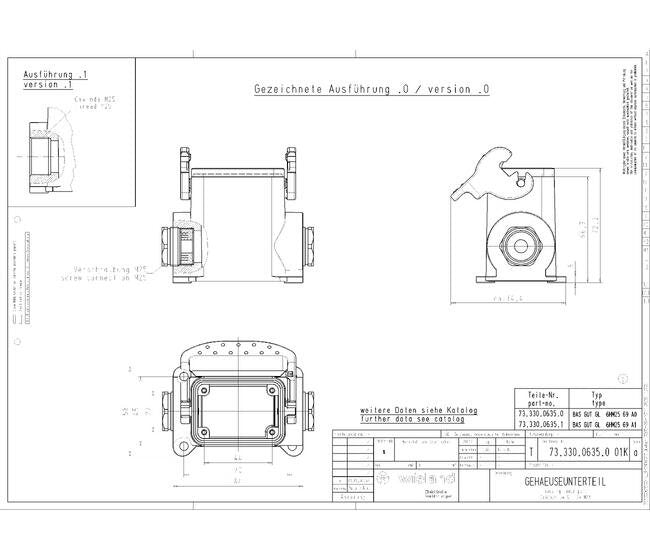

The Wieland BOTTOM BAS GUT GL 6HM25 69 A0 Multi-Pole Heavy-Duty Industrial Connector Housing is a top-quality aluminum housing designed for industrial use. Featuring a single locking lever and cable gland M25 on both sides, this IP54-rated high version housing ensures reliable protection. With a construction of 6 poles and a maximum operating temperature range of 120°C, it provides durability and performance in challenging environments. Compliant with RoHS standards, this connector housing guarantees safety and quality for your industrial applications.
Product Specifications
Classification Eclass 81 Classification
27440202
Classification Etim 30 Classification
EC000437
Classification Etim 40 Classification
EC000437
Classification Etim 50 Classification
EC000437
Classification Etim 60 Classification
EC000437
Classification Etim 70 Classification
EC000437
General Brands
Wieland
General Color
Gray
General Degree Of Protection Ip
IP54
General Housing Material
Aluminum
General Inflammability Class Of Insulation Material According Wi
Other
General Maximum Operating Temperature Range
120 ºC
General Minimum Operating Temperature Range
-40 ºC
General Model
BOTTOM BAS GUT GL 6HM25 69 A0
General Surface
With Powder Coating
General Ultraviolet Uv Resistant
Yes
Model Cable Entry
Two-sided
Model Construction
6
Model Emc Version
No
Model Height
72.2 mm
Model Hinged Lid
No
Model Length
84 mm
Model Locking Mechanism
Single Locking Lever
Model Thread Size M
25
Model Type
Surface Mounting (Base)
Model Type Of Cable
Gland nut
Model Width
58 mm
Model With Cable Screw Gland
Yes
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
Product Compliance Rohs Conformity Status
Compliant with Exceptions
Product Compliance Rohs Exceptions
III-6(c)
Specifications Number Of Poles
6
Specifications Profile
High
