Wieland Industrial Connector Housing M20 with Cable Gland IP54
Wieland Industrial Connector Housing M20 with Cable Gland IP54
SKU:IND-730fca
Durable Wieland Industrial Connector Housing with IP54 Protection, Ideal for Secure Multipole Connections
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Wieland Industrial Connector Housing M20 with Cable Gland IP54
$59.99
Quantity: 1
Claim Your Seller Account
Wieland Industrial Connector Housing M20 with Cable Gland IP54
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

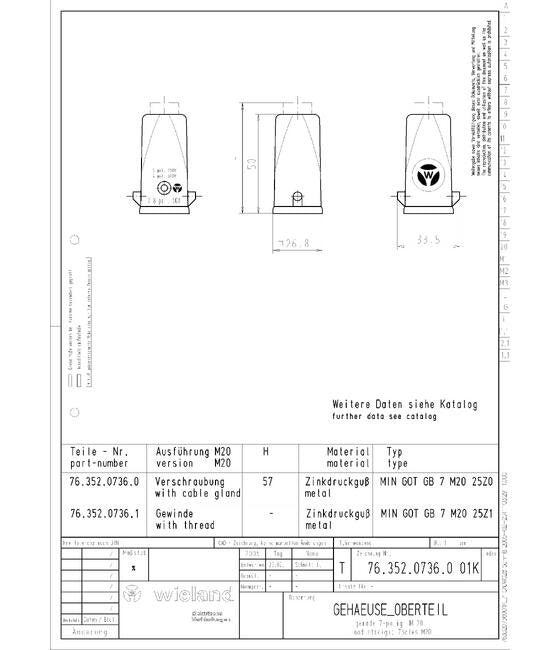

The Wieland HOOD MIN GOT GB 7 M20 25 Z0 Multi-Pole Heavy-Duty Industrial Connector Housing is a robust solution designed for industrial environments. Constructed with cast zinc and featuring a gray color with powder coating, this connector housing ensures durability and protection. With a degree of protection of IP54 and resistance to ultraviolet exposure, it can withstand temperatures ranging from -40°C to 120°C. The single locking lever mechanism and cable gland nut provide secure connections and ease of installation, making it a reliable choice for industrial multipole connector applications. The low-profile design adds versatility while meeting industry standards for quality and performance.
Product Specifications
Classification Eclass 81 Classification
27440202
Classification Etim 30 Classification
EC000437
Classification Etim 40 Classification
EC000437
Classification Etim 50 Classification
EC000437
Classification Etim 60 Classification
EC000437
Classification Etim 70 Classification
EC000437
General Brands
Wieland
General Color
Gray
General Degree Of Protection Ip
IP54
General Housing Material
Cast Zinc
General Inflammability Class Of Insulation Material According Wi
Other
General Maximum Operating Temperature Range
120 ºC
General Minimum Operating Temperature Range
-40 ºC
General Model
HOOD MIN GOT GB 7 M20 25 Z0
General Surface
With Powder Coating
General Ultraviolet Uv Resistant
Yes
Model Cable Entry
Above
Model Construction
3
Model Emc Version
No
Model Height
57 mm
Model Hinged Lid
No
Model Length
26.8 mm
Model Locking Mechanism
Single Locking Lever
Model Thread Size M
20
Model Type
Male
Model Type Of Cable
Gland nut
Model Width
33.5 mm
Model With Cable Screw Gland
Yes
Specifications Profile
Low
