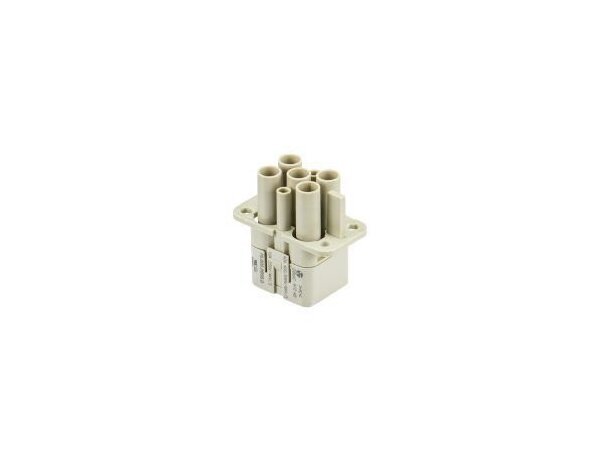

Wieland Industrial Connector Insert Q BUC 4/2 40/25
Wieland Industrial Connector Insert Q BUC 4/2 40/25
SKU:IND-1b3cde
Reliable Wieland Industrial Connector Insert for secure and efficient connections in industrial settings.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Wieland Industrial Connector Insert Q BUC 4/2 40/25
$29.99
Quantity: 1
Claim Your Seller Account
Wieland Industrial Connector Insert Q BUC 4/2 40/25
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland Industrial Connector Insert Q BUC 4/2 40/25 is a high-quality female insert designed for industrial multipole connectors. With a V0 inflammability class of insulation material, this gray connector insert operates reliably in temperatures ranging from -40 to 120 °C. It features 4 poles with a total of 6 poles (without ground contact), ensuring secure and efficient connections. Rated at 690V nominal voltage and 40A nominal current, this insert meets stringent industry standards, including REACH-SVHC compliance.
Product Specifications
Classification Eclass 81 Classification
27440205
Classification Etim 40 Classification
EC000438
Classification Etim 50 Classification
EC000438
Classification Etim 60 Classification
EC000438
Classification Etim 70 Classification
EC000438
Connection Data Connection Type
Crimp
Connection Data Number Of Poles
4
Connection Data Number Of Pole For Rated Current 2
2
Connection Data Total Number Of Poles Without Ground Contact
6
General Brands
Wieland
General Color
Gray
General Inflammability Class Of Insulation Material According Wi
V0
General Maximum Operating Temperature
120 ºC
General Minimum Operating Temperature
-40 ºC
General Model
FEMALE INSERT Q BUC 4/2 40/25
General Pollution Degree
3
General Type
Female Insert
Model With Housing
No
Product Compliance Reach Svhc Conformity Status
Compliant
Technical Data Din En 61984 Maximum Rated Voltage Faceground
400 V
Technical Data Din En 61984 Nominal Current
40 A
Technical Data Din En 61984 Nominal Voltage
690 V
Technical Data Din En 61984 Rated Current 2
10 A
Technical Data Din En 61984 Rated Impulse Voltage
4 kV
