Wieland M25 Green Leaves RST20I3 Female Connector
Wieland M25 Green Leaves RST20I3 Female Connector
SKU:CIR-ce3bc7
Reliable Wieland outdoor connector with 3 poles, IP69 protection, and IEC wire sizes. Ideal for rugged outdoor use.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Wieland M25 Green Leaves RST20I3 Female Connector
$29.99
Quantity: 1
Claim Your Seller Account
Wieland M25 Green Leaves RST20I3 Female Connector
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

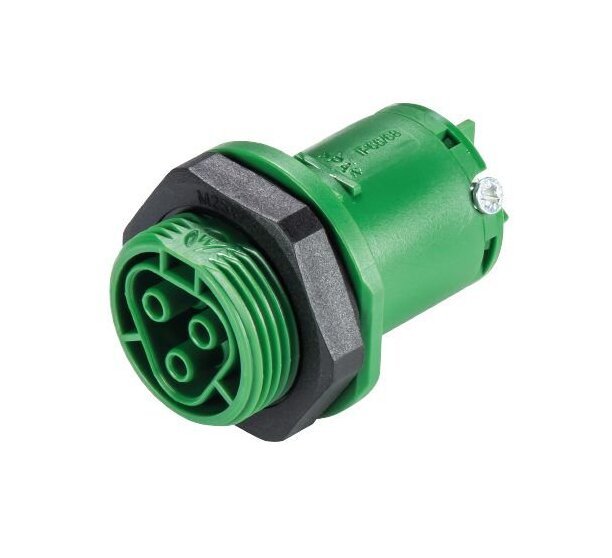

The Wieland RST20I3 Female Connector in Leaves Green color is a reliable solution for outdoor electrical connections. With a straight angle plug, 3 poles, and a screw connection type, it offers a rated current of 20A and a robust design for maximum durability. Featuring a thread size of M25 and IP69 protection level, it ensures secure and weather-resistant connections. Compliant with IEC wire sizes and UL standards, this connector is a perfect fit for various applications requiring high-quality outdoor-rated connectors.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
General Angle Of Plug
Straight
General Brands
Wieland
General Color Of Codingcontact Carrier
Leaves Green
General Connection Type
Screw Connection
General Connector Type
Female
General Maximum Rated Voltage
600 V
General Minimum Rated Voltage
250 V | 400 V
General Model
RST20I3 Female
General Number Of Poles
3
General Rated Current
20 A
General Rated Current Canada
15 A
Note Note
Technical details are subject to change
Technical Data Alternating Current Ac Voltage Disconnect Under L
350 V
Technical Data Cable Diameter
10 to 14 mm | 13 to 18 mm | 6 to 10 mm
Technical Data Current Disconnect Under Load Usa And Canada
20 A
Technical Data Degree Of Protection According To Canadian Ul Lis
Type 4X / 6P
Technical Data Degree Of Protection According To International E
IP69
Technical Data Thread Size
M25
Technical Data Wire Size According To Canadian Standards Associa
16 to 12 AWG
Technical Data Wire Size According To Canadian Ul Listed United
20 to 14 AWG
Technical Data Wire Size According To International Electrotechn
0.50 to 2.5 mm²
