Wieland M25 Thread Size RST20I3 Female Device Connector - Light Gray
Wieland M25 Thread Size RST20I3 Female Device Connector - Light Gray
SKU:CIR-a6a007
Wieland RST20I3 Female Device Connector - M25 Thread Size, 20A Rated Current, IP69 Protection
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Wieland M25 Thread Size RST20I3 Female Device Connector - Light Gray
$29.99
Quantity: 1
Claim Your Seller Account
Wieland M25 Thread Size RST20I3 Female Device Connector - Light Gray
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

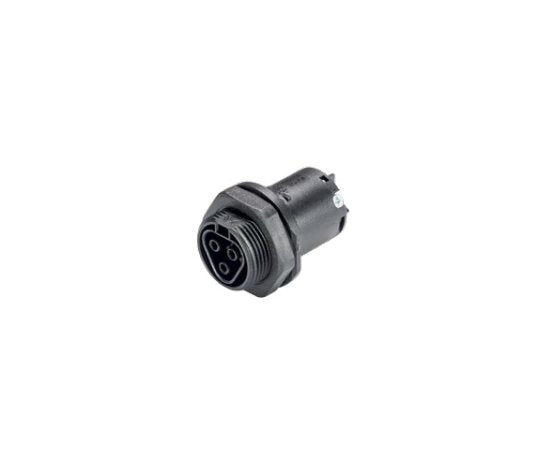

The Wieland RST20I3 Female Device Connector in light gray features a spring clamp connection, 3 poles, and a rated current of 20A. With a thread size of M25, it offers a secure connection for outdoor applications. The IP69 protection rating ensures durability against harsh environments, meeting international standards for safety and reliability. Suitable for cable diameters of 10 to 14mm, this connector is versatile and robust, ideal for both consumer and institutional buyers.
Product Specifications
General Angle Of Plug
Straight
General Brands
Wieland
General Color Of Codingcontact Carrier
Light Gray
General Connection Type
Spring Clamp Connection
General Connector Type
Female
General Maximum Rated Voltage
600 V
General Minimum Rated Voltage
250 V | 400 V
General Model
RST20I3 Female
General Number Of Poles
3
General Rated Current
20 A
General Rated Current Canada
15 A
Note Note
Technical details are subject to change
Technical Data Alternating Current Ac Voltage Disconnect Under L
350 V
Technical Data Cable Diameter
10 to 14 mm | 13 to 18 mm | 6 to 10 mm
Technical Data Current Disconnect Under Load Usa And Canada
20 A
Technical Data Degree Of Protection According To Canadian Ul Lis
Type 4X / 6P
Technical Data Degree Of Protection According To International E
IP69
Technical Data Thread Size
M25
Technical Data Wire Size According To Canadian Standards Associa
16 to 12 AWG
Technical Data Wire Size According To Canadian Ul Listed United
20 to 14 AWG
Technical Data Wire Size According To International Electrotechn
0.50 to 2.5 mm²
