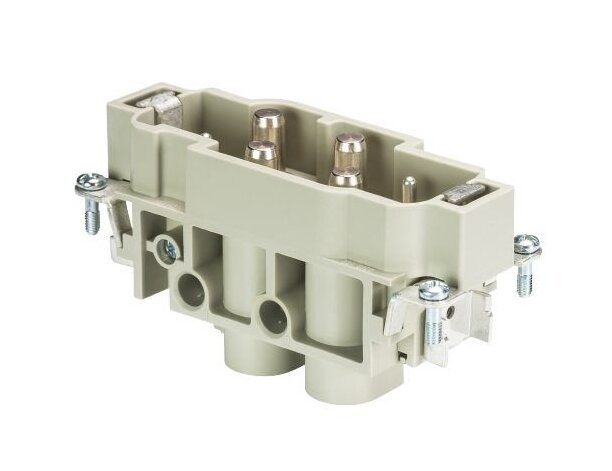

Wieland Male Industrial Connector Insert POW STS 4/2 FA DB AG
Wieland Male Industrial Connector Insert POW STS 4/2 FA DB AG
SKU:IND-07b184
High-quality Wieland industrial male connector insert with copper alloy contacts, RoHS compliant, and rated for 690V/82A for reliable performance.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Wieland Male Industrial Connector Insert POW STS 4/2 FA DB AG
$49.99
Quantity: 1
Claim Your Seller Account
Wieland Male Industrial Connector Insert POW STS 4/2 FA DB AG
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland Male Industrial Connector Insert POW STS 4/2 FA DB AG is a high-quality, durable solution for industrial applications. This 4-/2 pole + ground, screw connection insert is rated for 690V/82A and 400V/16A, making it ideal for demanding environments. With copper alloy contacts, silver-plated surfaces, and RoHS compliance, this insert ensures reliable conductivity and environmental responsibility. From its 6 kV impulse voltage rating to its flexibility with wire conductor cross sections, this insert meets stringent industry standards for performance and safety.
Product Specifications
Classification Eclass 81 Classification
27440205
Classification Etim 30 Classification
EC000438
Classification Etim 40 Classification
EC000438
Classification Etim 50 Classification
EC000438
Classification Etim 60 Classification
EC000438
Classification Etim 70 Classification
EC000438
Connection Data Connection Type
Screw Connection
Connection Data Maximum Conductor Diameter Rigid Solidstranded
16 mm²
Connection Data Minimum Conductor Diameter Rigid Solidstranded
1 mm²
Connection Data Number Of Poles
4
Connection Data Number Of Pole For Rated Current 2
2
Connection Data Protective Contact
Yes
Connection Data Total Number Of Poles Without Ground Contact
6
Connection Data With Wire Protection
No
Contacts Contact Material
Copper Alloy
Contacts Contact Resistance
⤠1.5 mΩ
Contacts Surface
Silver-Plated
Contacts Wire Strip Length
15 mm
General Alternative Size
16
General Brands
Wieland
General Color
Gray
General Inflammability Class Of Insulation Material According Wi
HB
General Mating Cycles
200
General Maximum Operating Temperature
120 ºC
General Minimum Operating Temperature
-40 ºC
General Model
MALE INSERT POW STS 4/2 FA DB AG
General Modular Version
No
General Pollution Degree
3
General Type
Male Insert
Model With Housing
No
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
Product Compliance Rohs Conformity Status
Compliant/Exempted
Product Compliance Rohs Exceptions
III-6(c)
Technical Data Din En 61984 Maximum Rated Voltage 2
400 V
Technical Data Din En 61984 Maximum Rated Voltage Faceground
690 V
Technical Data Din En 61984 Nominal Voltage
690 V
Technical Data Din En 61984 Rated Impulse Voltage
6 kV
Technical Data Ulcsa Maximum Rated Voltage According To Underwri
600 V
