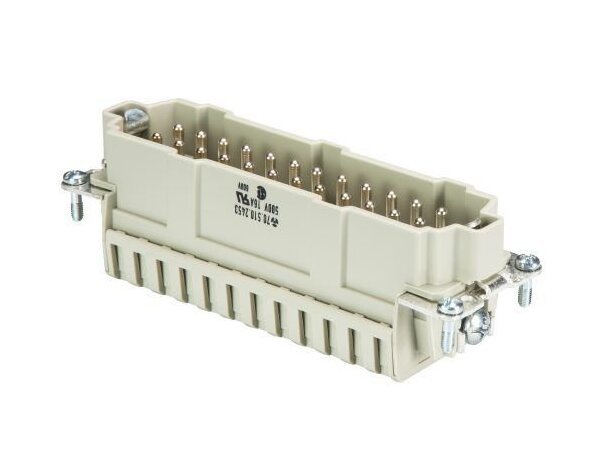

Wieland MALE INSERT BAS STF 24 2.5 50 Industrial Connector
Wieland MALE INSERT BAS STF 24 2.5 50 Industrial Connector
SKU:IND-d59685
Reliable Wieland Industrial Connector Insert with 24 poles, rated 16A/500V, tin-plated contacts, and RoHS compliant.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Wieland MALE INSERT BAS STF 24 2.5 50 Industrial Connector
$34.99
Quantity: 1
Claim Your Seller Account
Wieland MALE INSERT BAS STF 24 2.5 50 Industrial Connector
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland MALE INSERT BAS STF 24 2.5 50 Industrial Connector Insert is a reliable solution for industrial multipole connectors. With 24 poles and rated current of 16A at 500V, this male insert features tin-plated contacts for superior conductivity. It offers spring clamp connection type, protective contact, and a wide operating temperature range from -40°C to 120°C. The copper alloy contacts with silver-plating ensure low contact resistance and long-lasting performance. This insert meets RoHS compliance, offering a durable and efficient solution for various industrial applications.
Product Specifications
Classification Eclass 81 Classification
27440205
Classification Etim 30 Classification
EC000438
Classification Etim 40 Classification
EC000438
Classification Etim 50 Classification
EC000438
Classification Etim 60 Classification
EC000438
Classification Etim 70 Classification
EC000438
Connection Data Connection Type
Spring Clamp Connection
Connection Data Maximum Conductor Diameter Rigid Solidstranded
2.5 mm²
Connection Data Minimum Conductor Diameter Rigid Solidstranded
0.5 mm²
Connection Data Number Of Poles
24
Connection Data Protective Contact
Yes
Connection Data Total Number Of Poles Without Ground Contact
24
Connection Data With Wire Protection
Yes
Contacts Contact Material
Copper Alloy
Contacts Contact Resistance
⤠3 mΩ
Contacts Surface
Silver-Plated
Contacts Wire Strip Length
7 mm
General Brands
Wieland
General Color
Gray
General Inflammability Class Of Insulation Material According Wi
V2
General Mating Cycles
500
General Maximum Operating Temperature
120 ºC
General Minimum Operating Temperature
-40 ºC
General Model
MALE INSERT BAS STF 24 2,5 50
General Modular Version
No
General Pollution Degree
3
General Type
Male Insert
Model With Housing
No
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
Product Compliance Rohs Conformity Status
Compliant/Exempted
Product Compliance Rohs Exceptions
III-6(c)
Screws Head Design Ground Conductor Screws
H2/1.2-1.6 N·m
Screws Head Design Mounting Screws
H1/0.5-0.7 N·m
Technical Data Din En 61984 Maximum Rated Voltage Faceground
500 V
Technical Data Din En 61984 Nominal Current
16 A
Technical Data Din En 61984 Nominal Voltage
500 V
Technical Data Din En 61984 Rated Impulse Voltage
6 kV
Technical Data Ulcsa Maximum Rated Voltage According To Underwri
600 V
