Wieland MALE INSERT POW STS 6 6.0 40 AG Industrial Connector
Wieland MALE INSERT POW STS 6 6.0 40 AG Industrial Connector
SKU:IND-de9b04
Premium Wieland male insert for industrial connectors, 35A/600V, reliable screw connection, RoHS compliant.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Wieland MALE INSERT POW STS 6 6.0 40 AG Industrial Connector
$49.99
Quantity: 1
Claim Your Seller Account
Wieland MALE INSERT POW STS 6 6.0 40 AG Industrial Connector
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

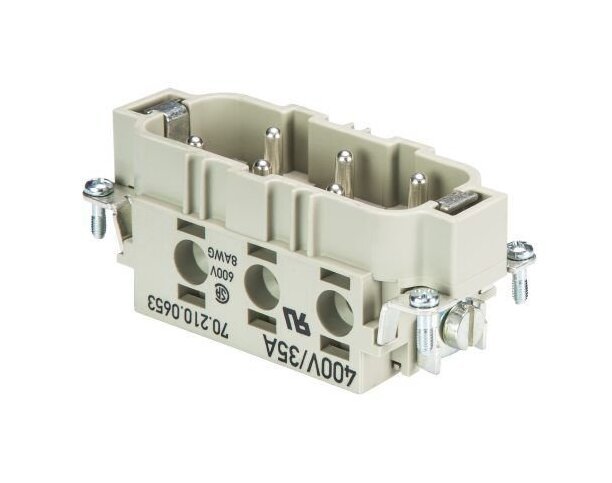

The Wieland MALE INSERT POW STS 6 6.0 40 AG Industrial Connector Insert is a high-quality 6 pole + ground connector designed for industrial applications. Featuring a rated current of 35A and a maximum rated voltage of 600V, this male insert ensures reliable power connections. With a temperature range from -40 ºC to 120 ºC, copper alloy contacts with silver-plating, and RoHS compliance, it offers durability and environmental responsibility. The screw connection type and protective contact make installations secure, meeting industry standards for safety and performance.
Product Specifications
Classification Eclass 81 Classification
27440205
Classification Etim 30 Classification
EC000438
Classification Etim 40 Classification
EC000438
Classification Etim 50 Classification
EC000438
Classification Etim 60 Classification
EC000438
Classification Etim 70 Classification
EC000438
Connection Data Connection Type
Screw Connection
Connection Data Maximum Conductor Diameter Rigid Solidstranded
6 mm²
Connection Data Minimum Conductor Diameter Rigid Solidstranded
2.5 mm²
Connection Data Number Of Poles
6
Connection Data Protective Contact
Yes
Connection Data Total Number Of Poles Without Ground Contact
6
Connection Data With Wire Protection
Yes
Contacts Contact Material
Copper Alloy
Contacts Contact Resistance
⤠0.6 mΩ
Contacts Surface
Silver-Plated
Contacts Wire Strip Length
10 mm
General Brands
Wieland
General Color
Gray
General Inflammability Class Of Insulation Material According Wi
HB
General Mating Cycles
200
General Maximum Operating Temperature
120 ºC
General Minimum Operating Temperature
-40 ºC
General Model
MALE INSERT POW STS 6 6,0 40 AG
General Modular Version
No
General Pollution Degree
3
General Type
Male Insert
Model With Housing
No
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
Product Compliance Rohs Conformity Status
Compliant/Exempted
Product Compliance Rohs Exceptions
III-6(c)
Screws Head Design Clamping Screws
H1/1.2-1.6 N·m
Screws Head Design Ground Conductor Screws
M5/2.0-2.5 Slot N·m
Screws Head Design Mounting Screws
H1/0.5-0.7 N·m
Technical Data Din En 61984 Maximum Rated Voltage Faceground
400 V
Technical Data Din En 61984 Nominal Voltage
400 V
Technical Data Din En 61984 Rated Impulse Voltage
6 kV
Technical Data Ulcsa Maximum Rated Voltage According To Underwri
600 V
