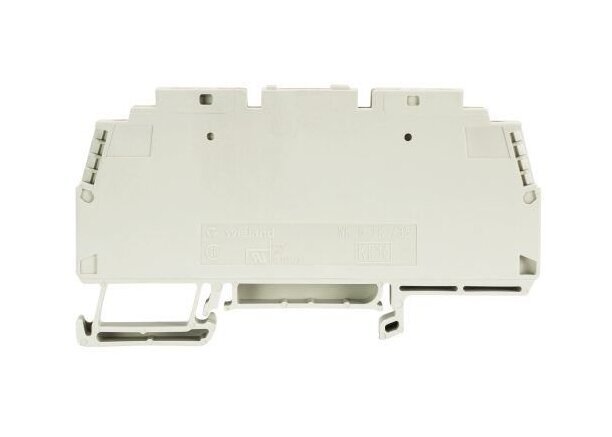

Wieland Measuring-Disconnecting Terminal Block
Wieland Measuring-Disconnecting Terminal Block
SKU:DIN-93cc3e
High-quality Wieland Terminal Block for secure current transformer disconnect applications. Screw connection, DIN Rail mount, 6mm² cross-section, and 32A rated current.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Wieland Measuring-Disconnecting Terminal Block
$49.99
Quantity: 1
Claim Your Seller Account
Wieland Measuring-Disconnecting Terminal Block
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland Measuring-Disconnecting Terminal Block is a reliable solution for current transformer disconnect applications. With a screw connection and DIN Rail mounting compatibility, this terminal block ensures secure and efficient electrical installations. It features a nominal cross-section of 6mm², flame-retardant insulating housing, and a rated current of 32A, meeting high industry standards like UL94 V0. The block is designed for utmost safety and durability, suitable for a wide range of electrical setups.
Product Specifications
Classification Eclass 81 Classification
27141126
Classification Etim 30 Classification
EC000902
Classification Etim 40 Classification
EC000902
Classification Etim 50 Classification
EC000902
Classification Etim 60 Classification
EC000902
Classification Etim 70 Classification
EC000902
Connection Data Connection Type 1
Screw Connection
Connection Data Connection Type 2
Screw Connection
Connection Data Maximum Fine Stranded Cross Section
6 mm²
Connection Data Maximum Solid Cross Section
10 mm²
Connection Data Minimum Fine Stranded Cross Section
0.5 mm²
Connection Data Minimum Solid Cross Section
0.5 mm²
Connection Data Torque Conductor Mounting
0.8 N·m
Connection Data Wire Strip Length
12 mm
General Brands
Wieland
General Color
Gray
General Inflammability Class Of Insulation Material According Wi
V0
General Insulating Housing
PA666
General Mounting Method
DIN Rail (Top Hat Rail)
General Mounting Size
35 x 7.5 mm
General Nominal Cross Section
6 mm²
General Number Of Clamp Positions Per Level
2
General Number Of Levels
1
General Terminal Blocks For Electrical Installations
Yes
General Width Grid Dimension
8 mm
Note Integrated Test Socket
No
Product Compliance Reach Svhc Conformity Status
Compliant
Product Compliance Rohs Conformity Status
Compliant
Technical Data Closing Plate Required
No
Technical Data Length
87 mm
Technical Data Maximum Rated Voltage
500 V
Technical Data Pollution Degree
3
Technical Data Rated Current
32 A
Technical Data Rated Impulse Voltage
6 kV
Technical Data Type Of Insulation Material
Thermoplastic
Technical Data Ulcsa Cross Section Canadian Standards Associatio
20-8 AWG
Technical Data Ulcsa Cross Section Underwriters Laboratories Ul
20-8 AWG
Technical Data Ulcsa Current Canadian Standards Association Csa
45 A
Technical Data Ulcsa Voltage Canadian Standards Association Csa
300 V
Technical Data Ulcsa Voltage Underwriters Laboratories Ul
600 V
