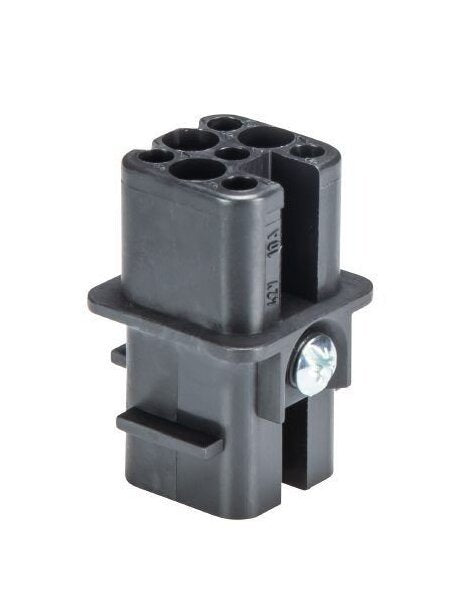

The Wieland MIN BUC 8 05 Industrial Connector Insert is a high-quality 8-pole female insert designed for industrial multipole connectors. It features crimp connections with silver-plated contacts, ensuring reliable performance. With a rated current of 10A and a rated voltage of 50V, this connector insert offers exceptional durability and conductivity. The insert is black in color, rated for a wide temperature range (-40°C to 120°C), and complies with RoHS and REACH-SVHC standards, making it a sustainable choice for industrial applications.
Product Specifications
Classification Eclass 81 Classification
27440205
Classification Etim 40 Classification
EC000438
Classification Etim 50 Classification
EC000438
Classification Etim 60 Classification
EC000438
Classification Etim 70 Classification
EC000438
Connection Data Connection Type
Crimp
Connection Data Number Of Poles
8
Connection Data Protective Contact
No
Connection Data Total Number Of Poles Without Ground Contact
8
Connection Data With Wire Protection
No
Contacts Contact Material
See contacts
Contacts Contact Resistance
⤠4 mΩ
Contacts Surface
See contacts
Contacts Wire Strip Length
4 mm
General Brands
Wieland
General Color
Black
General Inflammability Class Of Insulation Material According Wi
V2
General Mating Cycles
50
General Maximum Operating Temperature
120 ºC
General Minimum Operating Temperature
-40 ºC
General Model
FEMALE INSERT MIN BUC 8 05
General Modular Version
No
General Pollution Degree
3
General Type
Female Insert
Model With Housing
No
Product Compliance Reach Svhc Conformity Status
Compliant
Product Compliance Rohs Conformity Status
Compliant
Screws Head Design Mounting Screws
M3/0.5-0.7 Slot N·m
Technical Data Din En 61984 Maximum Rated Voltage Faceground
50 V
Technical Data Din En 61984 Nominal Current
10 A
Technical Data Din En 61984 Nominal Voltage
50 V
Technical Data Din En 61984 Rated Impulse Voltage
0.8 kV
Technical Data Ulcsa Flexible Wire Conductor Cross Section
24-16 AWG
Technical Data Ulcsa Maximum Flexible Wire Conductor Cross Secti
1.5 mm²
Technical Data Ulcsa Maximum Rated Voltage According To Underwri
42 V
Technical Data Ulcsa Minimum Flexible Wire Conductor Cross Secti
0.2 mm²
Technical Data Ulcsa Rated Current According Canadian Standards
10 A
