Wieland MIN BUS 3 2.5 40 Industrial Connector Insert
Wieland MIN BUS 3 2.5 40 Industrial Connector Insert
SKU:IND-57c6ed
High-quality Wieland MIN BUS 3 2.5 40 Industrial Connector Insert with 3 poles, 10A, 690V rating & tin-plated contacts for reliable performance.
Regular price
$23.99
Regular price
Sale price
$23.99
Unit price
per
Initiate Order
Wieland MIN BUS 3 2.5 40 Industrial Connector Insert
$23.99
Quantity: 1
Claim Your Seller Account
Wieland MIN BUS 3 2.5 40 Industrial Connector Insert
$23.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

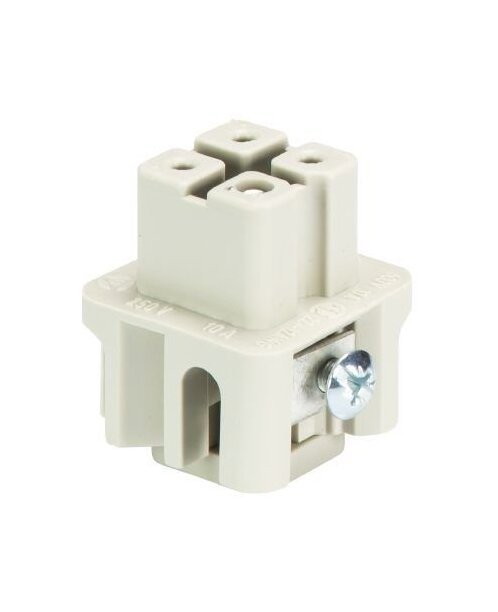

The Wieland MIN BUS 3 2.5 40 Industrial Connector Insert is a high-quality female insert designed for industrial use. It features 3 poles with a rated current of 10A and a rated voltage of 690V, ensuring reliable performance in demanding environments. The tin-plated contacts provide excellent conductivity and durability. With a temperature range from -40°C to 120°C, this connector insert is suitable for a wide range of applications. The screw connection type and copper alloy contact material meet industry standards for secure and efficient connections.
Product Specifications
Classification Eclass 81 Classification
27440205
Classification Etim 30 Classification
EC000438
Classification Etim 40 Classification
EC000438
Classification Etim 50 Classification
EC000438
Classification Etim 60 Classification
EC000438
Classification Etim 70 Classification
EC000438
Connection Data Connection Type
Screw Connection
Connection Data Maximum Conductor Diameter Rigid Solidstranded
2.5 mm²
Connection Data Minimum Conductor Diameter Rigid Solidstranded
0.5 mm²
Connection Data Number Of Poles
3
Connection Data Plus Switching Contacts
3
Connection Data Protective Contact
Yes
Connection Data With Wire Protection
No
Contacts Contact Material
Copper Alloy
Contacts Contact Resistance
⤠2 mΩ
Contacts Surface
Tin-Plated
Contacts Wire Strip Length
4 mm
General Brands
Wieland
General Color
Gray
General Inflammability Class Of Insulation Material According Wi
V2
General Mating Cycles
50
General Maximum Operating Temperature
120 ºC
General Minimum Operating Temperature
-40 ºC
General Model
FEMALE INSERT MIN BUS 3 2,5 40
General Modular Version
No
General Pollution Degree
3
General Type
Female Insert
Model With Housing
No
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
Product Compliance Rohs Conformity Status
Compliant/Exempted
Product Compliance Rohs Exceptions
III-6(c)
Screws Head Design Clamping Screws
M3/0.5-0.7 Slot N·m
Screws Head Design Ground Conductor Screws
M3/0.5-0.7 Slot N·m
Screws Head Design Mounting Screws
M3/0.5-0.7 Slot N·m
Technical Data Din En 61984 Maximum Rated Voltage Faceground
250 V
Technical Data Din En 61984 Nominal Voltage
400 V
Technical Data Din En 61984 Rated Impulse Voltage
4 kV
Technical Data Ulcsa Maximum Rated Voltage According To Underwri
600 V
