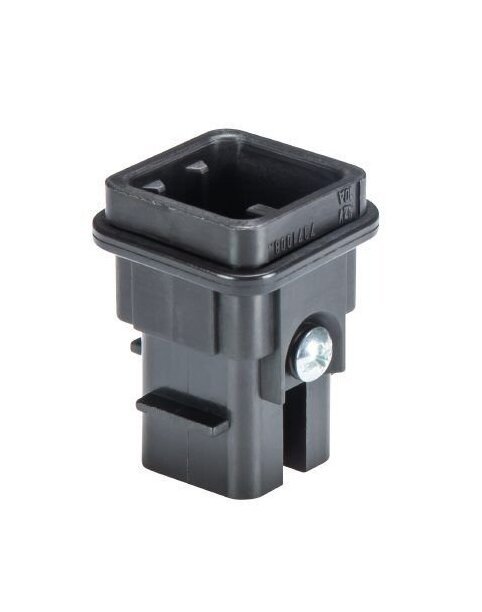

Wieland MIN STC 8 05 Male Insert Industrial Connector
Wieland MIN STC 8 05 Male Insert Industrial Connector
SKU:IND-fc1d60
High-quality Wieland industrial connector insert with 8 poles, crimp connection, and UL94 V2 insulation. Reliable and durable for industrial use.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Wieland MIN STC 8 05 Male Insert Industrial Connector
$24.99
Quantity: 1
Claim Your Seller Account
Wieland MIN STC 8 05 Male Insert Industrial Connector
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland MIN STC 8 05 Industrial Connector Insert is a high-quality male insert designed for industrial applications. Featuring 8 poles with a crimp connection type, this connector ensures reliable power transmission. With a rated current of 10A and a maximum operating temperature of 120°C, it meets stringent technical standards like UL94 V2 for insulation material. The black color and durable construction make it suitable for various industrial environments, providing a secure and long-lasting connection.
Product Specifications
Classification Eclass 81 Classification
27440205
Classification Etim 30 Classification
EC000438
Classification Etim 40 Classification
EC000438
Classification Etim 50 Classification
EC000438
Classification Etim 60 Classification
EC000438
Classification Etim 70 Classification
EC000438
Connection Data Connection Type
Crimp
Connection Data Number Of Poles
8
Connection Data Protective Contact
No
Connection Data Total Number Of Poles Without Ground Contact
8
Connection Data With Wire Protection
No
Contacts Contact Material
See contacts
Contacts Contact Resistance
⤠4 mΩ
Contacts Surface
See contacts
Contacts Wire Strip Length
4 mm
General Brands
Wieland
General Color
Black
General Inflammability Class Of Insulation Material According Wi
V2
General Mating Cycles
50
General Maximum Operating Temperature
120 ºC
General Minimum Operating Temperature
-40 ºC
General Model
MALE INSERT MIN STC 8 05
General Modular Version
No
General Pollution Degree
3
General Type
Male Insert
Model With Housing
No
Product Compliance Reach Svhc Conformity Status
Compliant
Product Compliance Rohs Conformity Status
Compliant
Screws Head Design Mounting Screws
M3/0.5-0.7 Slot N·m
Technical Data Din En 61984 Maximum Rated Voltage Faceground
50 V
Technical Data Din En 61984 Nominal Current
10 A
Technical Data Din En 61984 Nominal Voltage
50 V
Technical Data Din En 61984 Rated Impulse Voltage
0.8 kV
Technical Data Ulcsa Flexible Wire Conductor Cross Section
24-16 AWG
Technical Data Ulcsa Maximum Flexible Wire Conductor Cross Secti
1.5 mm²
Technical Data Ulcsa Maximum Rated Voltage According To Underwri
42 V
Technical Data Ulcsa Minimum Flexible Wire Conductor Cross Secti
0.2 mm²
Technical Data Ulcsa Rated Current According Canadian Standards
10 A
