Wieland MIN STS 3-Pole Industrial Connector Insert
Wieland MIN STS 3-Pole Industrial Connector Insert
SKU:IND-cd4715
High-quality Wieland 3-Pole Industrial Connector Insert with 10A and 690V rating for secure and reliable connections in industrial settings.
Regular price
$25.99
Regular price
Sale price
$25.99
Unit price
per
Initiate Order
Wieland MIN STS 3-Pole Industrial Connector Insert
$25.99
Quantity: 1
Claim Your Seller Account
Wieland MIN STS 3-Pole Industrial Connector Insert
$25.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

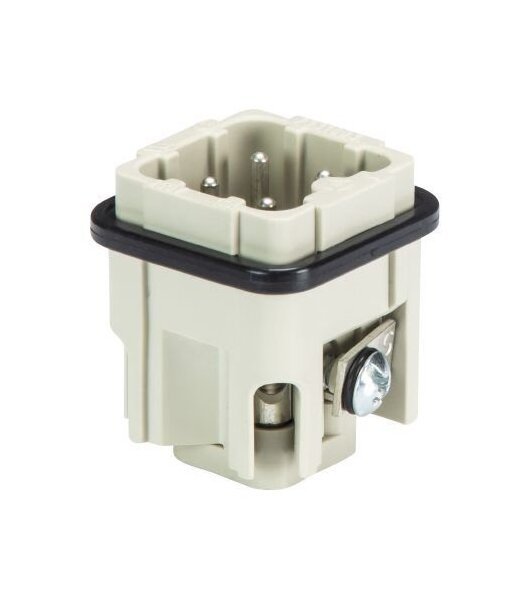

The Wieland MIN STS 3 2,5 40 Industrial Connector Insert is a high-quality male insert designed for industrial applications. With a rated current of 10A and a rated voltage of 690V, this connector insert features tin-plated contacts for enhanced conductivity and durability. It offers a secure screw connection type with 3 poles, suitable for a wide range of industrial multipole connector applications. The copper alloy contacts with tin plating ensure reliable performance with a contact resistance of ≤ 2 mΩ, meeting stringent technical standards for industrial connectors.
Product Specifications
Classification Eclass 81 Classification
27440205
Classification Etim 30 Classification
EC000438
Classification Etim 40 Classification
EC000438
Classification Etim 50 Classification
EC000438
Classification Etim 60 Classification
EC000438
Classification Etim 70 Classification
EC000438
Connection Data Connection Type
Screw Connection
Connection Data Maximum Conductor Diameter Rigid Solidstranded
2.5 mm²
Connection Data Minimum Conductor Diameter Rigid Solidstranded
0.5 mm²
Connection Data Number Of Poles
3
Connection Data Protective Contact
Yes
Connection Data Total Number Of Poles Without Ground Contact
3
Connection Data With Wire Protection
No
Contacts Contact Material
Copper Alloy
Contacts Contact Resistance
⤠2 mΩ
Contacts Surface
Tin-Plated
Contacts Wire Strip Length
4 mm
General Brands
Wieland
General Color
Gray
General Inflammability Class Of Insulation Material According Wi
V2
General Mating Cycles
50
General Maximum Operating Temperature
120 ºC
General Minimum Operating Temperature
-40 ºC
General Model
MALE INSERT MIN STS 3 2,5 40
General Modular Version
No
General Pollution Degree
3
General Type
Male Insert
Model With Housing
No
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
Product Compliance Rohs Conformity Status
Compliant/Exempted
Product Compliance Rohs Exceptions
III-6(c)
Screws Head Design Clamping Screws
M3/0.5-0.7 Slot N·m
Screws Head Design Ground Conductor Screws
M3/0.5-0.7 Slot N·m
Screws Head Design Mounting Screws
M3/0.5-0.7 Slot N·m
Technical Data Din En 61984 Maximum Rated Voltage Faceground
250 V
Technical Data Din En 61984 Nominal Voltage
400 V
Technical Data Din En 61984 Rated Impulse Voltage
4 kV
Technical Data Ulcsa Maximum Rated Voltage According To Underwri
600 V
