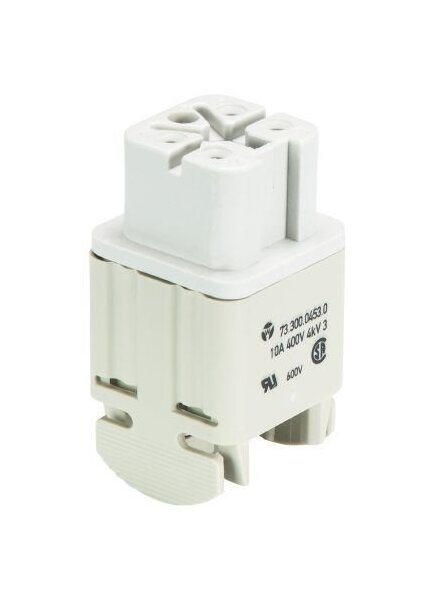

Wieland MiNI BUS 4 2,5 25 AG Industrial Connector Insert
Wieland MiNI BUS 4 2,5 25 AG Industrial Connector Insert
SKU:IND-ecd619
High-quality Wieland 4-pole female insert for industrial use with 10A, 400V, and silver-plated contacts. RoHS and REACH-SVHC compliant.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Wieland MiNI BUS 4 2,5 25 AG Industrial Connector Insert
$29.99
Quantity: 1
Claim Your Seller Account
Wieland MiNI BUS 4 2,5 25 AG Industrial Connector Insert
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland MiNI BUS 4 2,5 25 AG Industrial Connector Insert is a high-quality 4-pole female insert designed for industrial applications. With a rated current of 10A and a rated voltage of 400V, this connector insert features silver-plated contacts for enhanced conductivity. It offers a reliable screw connection, copper alloy contacts, and a temperature range from -40°C up to 120°C. This connector insert meets RoHS and REACH-SVHC conformity standards, ensuring environmental compliance.
Product Specifications
Classification Eclass 81 Classification
27440205
Classification Etim 30 Classification
EC000438
Classification Etim 40 Classification
EC000438
Classification Etim 50 Classification
EC000438
Classification Etim 60 Classification
EC000438
Classification Etim 70 Classification
EC000438
Connection Data Connection Type
Screw Connection
Connection Data Maximum Conductor Diameter Rigid Solidstranded
2.5 mm²
Connection Data Minimum Conductor Diameter Rigid Solidstranded
0.5 mm²
Connection Data Number Of Poles
4
Connection Data Protective Contact
Yes
Connection Data Total Number Of Poles Without Ground Contact
4
Connection Data With Wire Protection
No
Contacts Contact Material
Copper Alloy
Contacts Contact Resistance
⤠4 mΩ
Contacts Surface
Silver-Plated
Contacts Wire Strip Length
4 mm
General Brands
Wieland
General Color
Gray
General Inflammability Class Of Insulation Material According Wi
V0
General Mating Cycles
100
General Maximum Operating Temperature
120 ºC
General Minimum Operating Temperature
-40 ºC
General Model
FEMALE INSERT MIN BUS 4 2,5 25 AG
General Modular Version
No
General Pollution Degree
3
General Type
Female Insert
Model With Housing
No
Product Compliance Reach Svhc Conformity Status
Compliant
Product Compliance Rohs Conformity Status
Compliant
Screws Head Design Clamping Screws
M3/0.5-0.7 Slot N·m
Screws Head Design Ground Conductor Screws
M3/0.5-0.7 Slot N·m
Screws Head Design Mounting Screws
M3/0.5-0.7 Slot N·m
Technical Data Din En 61984 Maximum Rated Voltage Faceground
400 V
Technical Data Din En 61984 Nominal Current
10 A
Technical Data Din En 61984 Nominal Voltage
400 V
Technical Data Din En 61984 Rated Impulse Voltage
4 kV
Technical Data Ulcsa Flexible Wire Conductor Cross Section
22-12 AWG
Technical Data Ulcsa Maximum Flexible Wire Conductor Cross Secti
2.5 mm²
Technical Data Ulcsa Maximum Rated Voltage According To Underwri
600 V
