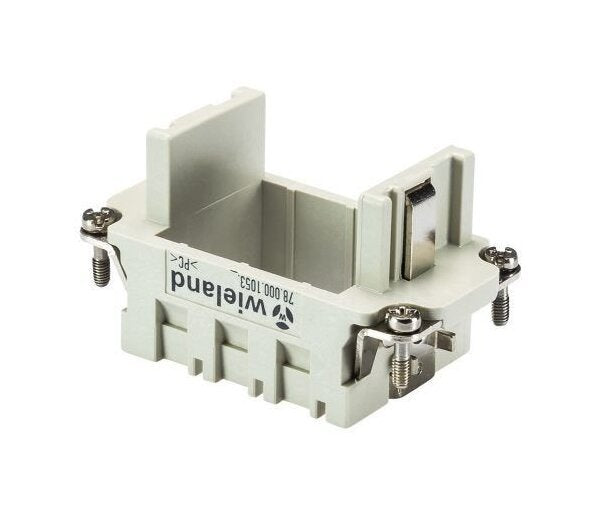

Wieland Modular Connector Female Frame - 3 Module
Wieland Modular Connector Female Frame - 3 Module
SKU:IND-34fbd1
Reliable Wieland Modular Connector Female Frame for 3 Modules, ideal for Industrial Multipole Connectors. Durable, flame-resistant design with easy installation.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Wieland Modular Connector Female Frame - 3 Module
$49.99
Quantity: 1
Claim Your Seller Account
Wieland Modular Connector Female Frame - 3 Module
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Wieland Modular Connector Female Frame for 3 Modules is a versatile and reliable component designed for Industrial Multipole Connectors. With a durable plastic construction and a grounding connection, this female insert ensures secure and efficient electrical connections. It has a wide operating temperature range from -40°C to 120°C and meets V0 flammability standards according to UL94. The frame accommodates 3 positions and includes ground conductor screws for easy installation, making it ideal for industrial applications where robust and compliant connectors are essential.
Product Specifications
Classification Eclass 81 Classification
27440210
Classification Etim 30 Classification
EC002310
Classification Etim 40 Classification
EC002310
Classification Etim 50 Classification
EC002310
Classification Etim 60 Classification
EC002310
Classification Etim 70 Classification
EC002310
General Brands
Wieland
General Color
Gray
General Construction
10
General Earthing Connection
Yes
General Ground Conductor Screws Slot
Z2/1.2 N·m
General Inflammability Class Of Insulation Material According Wi
V0
General Material
Plastic
General Maximum Operating Temperature Range
120 ºC
General Minimum Operating Temperature Range
-40 ºC
General Model
Female Insert
General Mounting Screws
Z1/0.5 N·m
General Number Of Positions
3
