Wieland Modular Connector Female Frame for 2 Modules
Wieland Modular Connector Female Frame for 2 Modules
SKU:IND-66804e
Reliable Wieland Modular Connector Frame for 2 Modules, Gray, Plastic Construction, Earthing Connection & Ground Conductor Screws, UL94 V0, -40°C to 120°C
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Wieland Modular Connector Female Frame for 2 Modules
$29.99
Quantity: 1
Claim Your Seller Account
Wieland Modular Connector Female Frame for 2 Modules
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

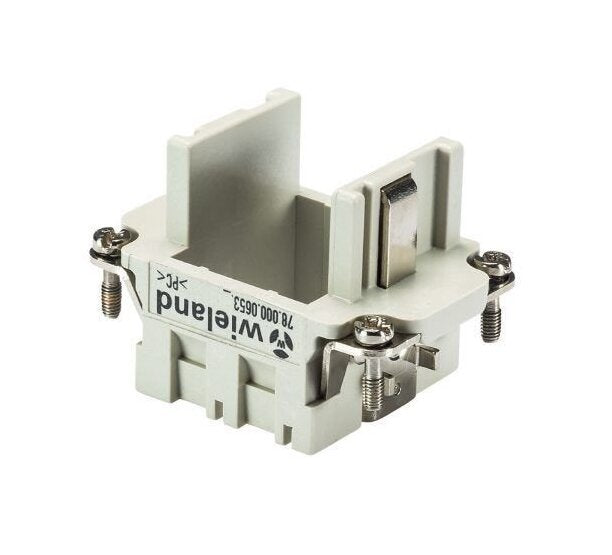

The Wieland Modular Connector System Female Frame for 2 Modules is a reliable and durable solution for industrial multipole connectors. This gray frame, constructed from high-quality plastic, ensures a secure fit for 2 modules with earthing connection and ground conductor screws included. Meeting UL94 V0 inflammability class and with a temperature range of -40 ºC to 120 ºC, this frame offers exceptional performance and safety. With easy mounting screws, this frame guarantees quick and efficient installation, suitable for various industrial applications.
Product Specifications
Classification Eclass 81 Classification
27440210
Classification Etim 30 Classification
EC002310
Classification Etim 40 Classification
EC002310
Classification Etim 50 Classification
EC002310
Classification Etim 60 Classification
EC002310
Classification Etim 70 Classification
EC002310
General Brands
Wieland
General Color
Gray
General Construction
6
General Earthing Connection
Yes
General Ground Conductor Screws Slot
Z2/1.2 N·m
General Inflammability Class Of Insulation Material According Wi
V0
General Material
Plastic
General Maximum Operating Temperature Range
120 ºC
General Minimum Operating Temperature Range
-40 ºC
General Model
Female Insert
General Mounting Screws
Z1/0.5 N·m
General Number Of Positions
2
